Charge Battery - AR54.10-P-1130LW
Model 205, 213, 238, 253, 293
Shown on model 205
| Risk of fire /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death due to voltage U >= 30 V AC and U >= 60 V DC. | No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| Check | |||
| 1 | Check condition of on-board electrical system battery. | Not with active transport mode. | |
| Model 205 except code P25 (BlueEFFICIENCY Edition) except code U98 (LITHIUM-ION STARTER BATTERY (LISB)) Model 213, 238 except code U98 (LITHIUM-ION STARTER BATTERY (LISB)) Model 253 except code U98 (LITHIUM-ION STARTER BATTERY (LISB)) |
AR54.10-P-1129LW | ||
| Model 293 | AR54.10-P-1131EQ | ||
| Charging | |||

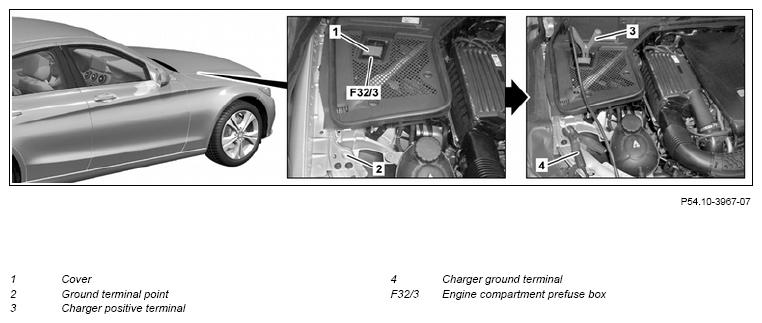

| 2 | Expose charging terminal point of engine compartment prefuse box (F32/3) by moving the cover (1). | With on-board electrical system battery installed. | |
| 3.1 | Connect charger positive terminal (3) to charging terminal point of engine compartment prefuse box (F32/3) and charger ground clamp (4) to ground terminal point (2). | With on-board electrical system battery installed. | |
| 000 588 00 81 00 Charger | Do not reverse polarity. Otherwise a short circuit will cause damage. |
WS54.00-P-0037B | |
| 3.2 | Connect charger to on-board electrical system battery. | With on-board electrical system battery removed. | |
| 000 588 00 81 00 Charger | WS54.00-P-0037B | ||
Do not reverse polarity. Otherwise a short circuit will cause damage. |
|||
| 4 | Charge on-board electrical system battery. | The battery charging period depends on the charge level of the on-board electrical system battery. The on-board electrical system battery is sufficiently charged when the displayed charging current is < 5 A. When a Midtronics test should be performed. ↓ Interrupt charging process when charging current undershoots 25 A and perform Midtronics test. |
|
| 5 | Switch off charger. | Charger must be switched off before disconnecting. Arcing can otherwise occur. |
|
| 6 | Disconnect charger positive terminal (3) and charger ground clamp (4). | ||
| Check | |||
| 7 | Check condition of on-board electrical system battery. | Not with active transport mode. | |
| Model 205 except code P25 (BlueEFFICIENCY Edition) except code U98 (LITHIUM-ION STARTER BATTERY (LISB)) Model 213, 238 except code U98 (LITHIUM-ION STARTER BATTERY (LISB)) Model 253 except code U98 (LITHIUM-ION STARTER BATTERY (LISB)) |
AR54.10-P-1129LW | ||
| Model 293 | AR54.10-P-1131EQ |
