(Disconnect/Connect Battery Ground Line - AR54.10-P-0003EQ)
Model 293
MODIFICATION NOTES
| 25.07.2019 | Disconnect charging cable connector, added. | Operation step 1 |
| Risk of fire /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning caused by swallowing battery electrolyte or absorption of lead through the skin or orifices. Risk of death due to voltage U >= 30 V AC and U >= 60 V DC. | No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notes on battery | AH54.10-P-0001-01A | ||
| Disconnect, connect | |||
| 1 | Disconnect charging cable connector of high-voltage on-board electrical system and wait 30 s until power-down is complete. | If high-voltage on-board electrical system is charged via a charging cable connector. | |
| 2 | Open hood. | ||
| 3 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||

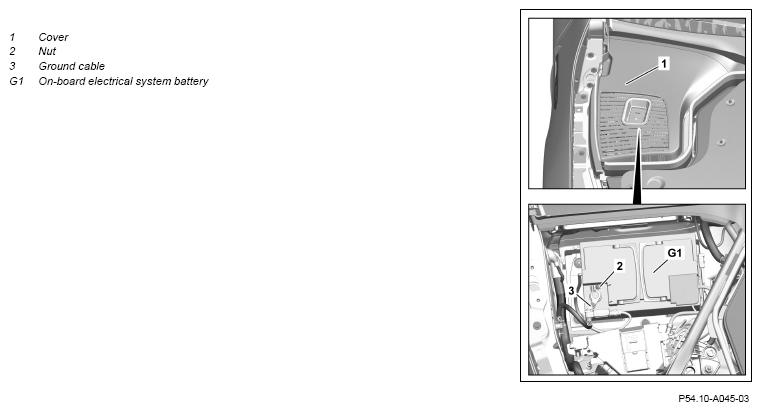

| 4 | Remove cover (1) and expose on-board electrical system battery (G1). | ||
| AP83.00-P-8381E | |||
| 5 | Disconnect charger of on-board electrical system battery (G1). | When an external charger is connected. | |
| 6 | Disconnect diagnostic unit. | If a diagnostic device is connected. | |
| AD00.00-P-2000-06FR | |||
| 7 | Undo nut (2) and remove ground line (3) from negative pole of on-board electrical system battery (G1). | *BA54.10-P-1003-01M | |
| 8 | Connect in reverse order. |
BATTERY
| Number | Designation | Model 293 | |
|---|---|---|---|
| BA54.10-P-1003-01M | Nut, electrical line to negative terminal/positive terminal of on-board electrical system battery | Nm | 6 |
