Remove/Install Propeller Shaft Intermediate Bearing And Replace Grooved Ball Bearing - AR41.10-P-0100LW
Model 205, 213, 238, 253 (except 253.992/993)
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove | |||
| 1 | Remove propeller shaft | Model 253 (except 253.992/993) | AR41.10-P-0050LWX |
| Model 205, 213, 238 | AR41.10-P-0050LW | ||

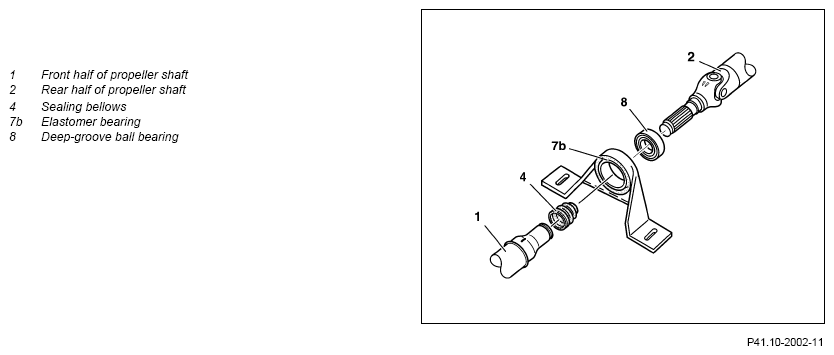

| 2 | Detach front half of propeller shaft (1) and rear half of propeller shaft (2) from slide joint connection | ||
| 3 | Pull seal bellows (4) off front half of propeller shaft (1) | ||
| 4 | Detach elastomer bearing (7b) together with grooved ball bearing (8) from rear half of propeller shaft (2) | AR41.10-P-0100-07LW | |
| Fig 2 | |||
| Fig 4 | |||
| 5 | Press grooved ball bearing (8) out of elastomer bearing (7b) | Model 213, 238 | AR41.10-P-0100-03OLC |
| Model 205, 253 (except 253.992/993) | AR41.10-P-0100-02LW | ||
| Fig 5 | |||
| Install | |||
| 6 | Press grooved ball bearing (8) into elastomer bearing (7b) | Model 213, 238 | AR41.10-P-0100-03OLC |
| Model 205, 253 (except 253.992/993) | AR41.10-P-0100-02LW | ||
| Fig 5 | |||
| 7 | Press elastomer bearing (7b) together with grooved ball bearing (8) onto joint fork of rear half of propeller shaft (2) | AR41.10-P-0100-05LW | |
| Fig 3 | |||
| 8 | Check seal bellows (4) for damage and leakages | If damaged or leaking ↓ Replace axle boots (4). |
|
| 9 | Fit seal bellows (4) onto front half of propeller shaft (1) | ||
| 10 | Press front and rear halves of propeller shaft (1, 2) together | AR41.10-P-0050-05LW | |
| Long-life grease | *BR00.45-Z-1001-06A | ||
| 11 | Install propeller shaft | Model 253 (except 253.992/993) | AR41.10-P-0050LWX |
| Model 205, 213, 238 | AR41.10-P-0050LW |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-06A | Long-life grease | A 000 989 63 51 11 |
