Replace Suspension Strut Tower - Ar62.20-P-1232LW

Model 205

Model 213

Model 238

Model 253

Model 293

Shown on model 205.0

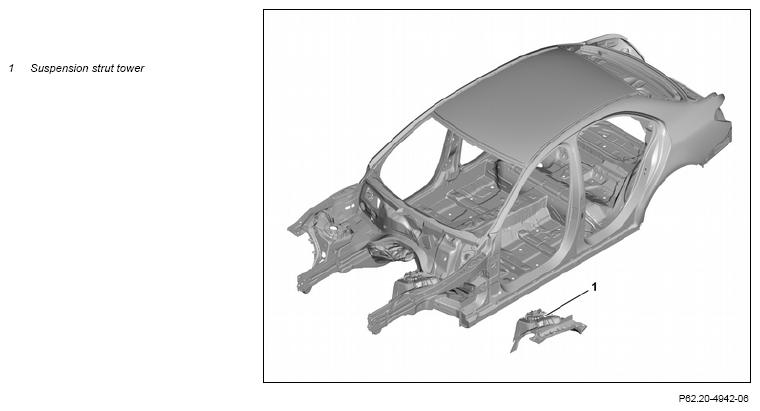

Fig 1: Suspension Strut Tower And Locations
G12939133Courtesy of MERCEDES-BENZ USA
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. See AS00.00-Z-0017-01A .
  Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. See AS00.00-Z-0010-01A .
  Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. Model 205.0/1/2, 213, 253, 293 AS00.00-Z-0035-01A
  Risk of explosion  from aluminum grinding dust, risk of injury to respiratory system from inhaling dust Wear dust filter mask, safety glasses and protective gloves.
Use a suitable, grounded dust extraction system.
See AS60.00-Z-0007-01N .
  General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system   See AH00.00-Z-0300-01A .
  Information on preventing damage to electronic components due to electrostatic discharge   See AH54.00-P-0001-01A .
  Notes on battery   See AH54.10-P-0001-01A .
  General information on body repair   See AH60.00-N-0001-01A .
  Pretreatment of bonding surfaces   See AH60.00-P-0008-01SX .
  General information on crack diagnosis of aluminum parts   See AH60.00-P-0014-01N .
  General information on repair of vehicles with ultra-strength steels.   See AH60.00-P-0024-01N .
  Note on working on aluminum components and vehicles   See AH60.00-P-0034-01LW .
  General information on MB materials   See AH98.00-P-9409-03A .
  Remove
1 Remove detachable parts in area of repair point.
2 Cover all detachable parts remaining in vehicle with spark protection blankets.
3 Partially remove upper front longitudinal member.   See AR62.20-P-1287LW .
4
REFER TO SPECIAL TOOLS
Set up straightening bench with straightening bench crossmembers and straightening set.
000 588 01 23 00 Body straightening system
  See WS60.00-P-0023K .
5 Place vehicle on straightening bench and fasten.
6 Remove strut tower (1).   See AR62.20-P-1232-01LW .
REFER TO SPECIAL TOOLS 000 588 00 84 00 Heat gun IMPORTANTCommercially available devices/tools
Round wire brush
Spot weld milling machine
Body power jigsaw
Wet/dry vacuum cleaner
Aluminum workplace
Aluminum tools
See WS54.00-P-0049B .
7 Prepare suspension strut tower (1). IMPORTANTCommercially available devices/tools
Round wire brush
Aluminum workplace
Aluminum tools
See AR62.20-P-1232-03LW .
INSTALLING Install
  The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. See AS00.00-Z-0007-01A .
  Measures for preventing damage to components when performing electric welding and soldering work   See AH60.00-P-0001-02A .
  General information on riveting   See AH60.00-P-0003-01N .
8 Install suspension strut tower (1).   See AR62.20-P-1232-04LW .
REFER TO SPECIAL TOOLS 000 588 01 84 00 Welder   See WS60.00-P-0021K .
REFER TO SPECIAL TOOLS 000 588 01 23 00 Body straightening system IMPORTANTCommercially available devices/tools
Round wire brush
Body power jigsaw
Manual temporary fastener 6.35 mm
Blind rivet gun (minimum pull-off force 19 kN)
Wet/dry vacuum cleaner
Aluminum workplace
Aluminum tools
See WS60.00-P-0023K .
    Blind rivet 6.5X14.5 (clamping range 4 mm to 7 mm, draw-off strength min. 19 kN) See *BR00.45-Z-1016-13A .
    Blind rivet 6.5X12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) See *BR00.45-Z-1012-13A .
    Blind rivet 6.4 M6 (clamping range 5.82 mm to 7.82 mm, draw-off strength min. 16 kN) See *BR00.45-Z-1032-13A .
    Parts kit for 2-component adhesive for body See *BR00.45-Z-1162-02A .
9 Release vehicle from straightening bench, lift and remove straightening bench.
10 Clean weld joints and sheet metal flange. IMPORTANTCommercially available devices/tools
Round wire brush
Aluminum workplace
Aluminum tools

11 Partially install upper front longitudinal member.   See AR62.20-P-1287LW .
12 Install detachable parts in the area of the repair point.
Number Designation Order number
BR00.45-Z-1012-13A Blind rivet 6.5X12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) A 004 990 16 97
BR00.45-Z-1016-13A Blind rivet 6.5X14.5 (clamping range 4 mm to 7 mm, draw-off strength min. 19 kN) A 004 990 17 97
BR00.45-Z-1032-13A Blind rivet 6.4 M6 (clamping range 5.82 mm to 7.82 mm, draw-off strength min. 16 kN) A 003 990 81 97
BR00.45-Z-1162-02A Parts kit for 2-component adhesive for body A 012 989 17 71
