Remove/install sound generator - AR09.41-P-0122MTA
ENGINE 133 in MODEL 117, 156, 176 with CODE U21 (AMG Performance exhaust system)
| Remove/install | |||
| 1 | Remove upper engine cover | ||
| 2 | Remove air filter housing | AR09.10-P-1150MTA | |
| 3 | Remove battery carrier | AR54.00-P-0002NKB | |

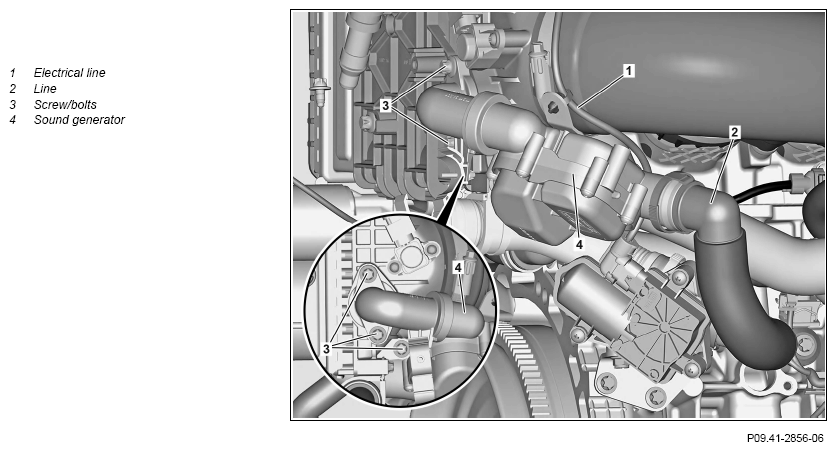

| 4 | Detach electrical line (1) | ||
| 5 | Unclip FIR sound line from SOGE (4) | ||
| 6 | Detach line (2) from SOGE (4) and place to one side | ||
| 7 | Remove screw/bolt (3) | *BA09.41-P-1007-01T | |
| 8 | Remove SOGE (4) with holder upwards | ||
| 9 | Detach SOGE (4) from holder | Only when replacing the SOGE (4). | |
| 10 | Install in the reverse order |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 133 | |
|---|---|---|---|
| BA09.41-P-1007-01T | Bolt, sound generator to charge air cooler | Nm | 8 |
