Remove/install charge air hoses - AR09.41-P-8619MTA

ENGINE 133 in MODEL 117, 156, 176

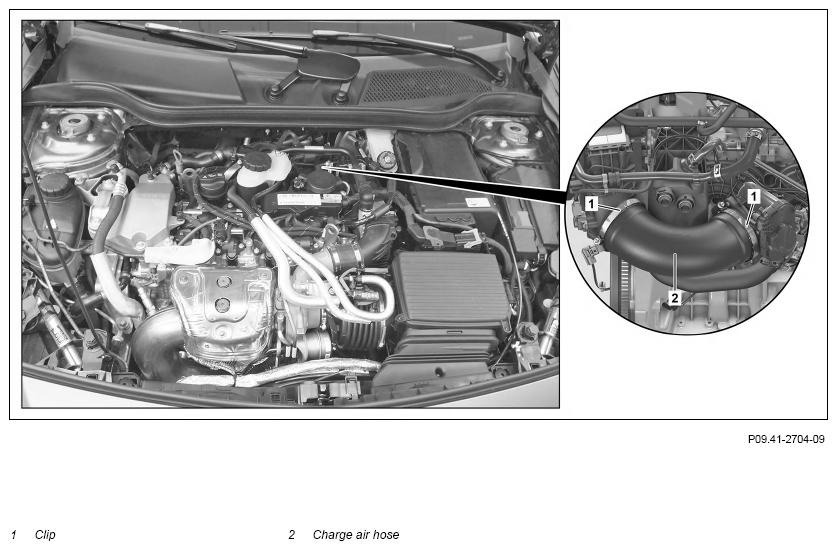

Fig 1: Charge Air Hoses Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove/install
1	Remove engine cover
2	Remove battery		AR54.10-P-0005NKB
2	Remove battery	The battery base remains in the vehicle
3	Loosen clamps (1)
4	Remove charge air hose (2) upwards	Arrow points in the direction of the throttle valve.
5	Install in the reverse order
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
6	Carry out an engine test run and check the charge air hose (2) for leaktightness
