Check and lubricate hand control unit - AP86.20-P-8650C
WARNING: This page does not describe the selected car, but rather 176 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz S65 AMG, 2020 Mercedes-Benz GLA250, 2019 Mercedes-Benz SLC300, and 2019 Mercedes-Benz S65 AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 156, 169, 172, 176, 204, 205, 207, 212, 217, 218, 221, 222, 242, 245, 246
(with driving aids ex factory)

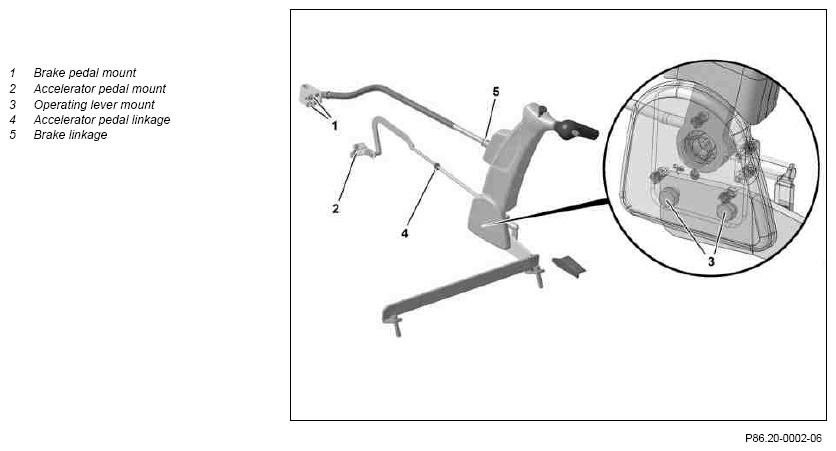

Classic operating lever

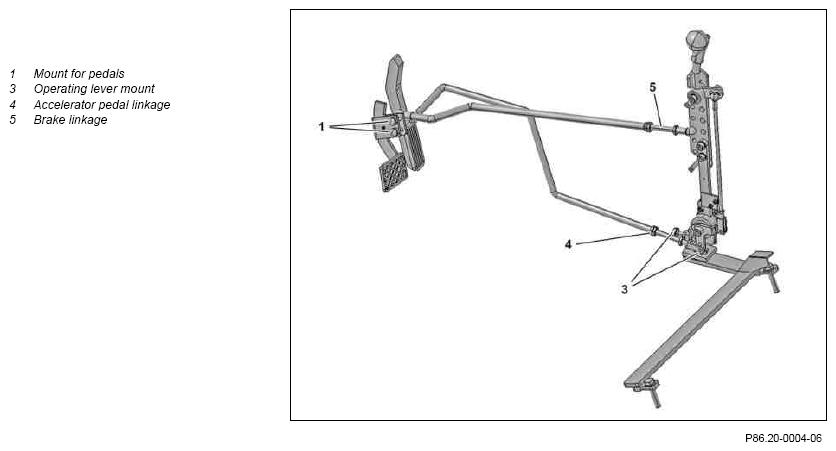

Compact operating lever

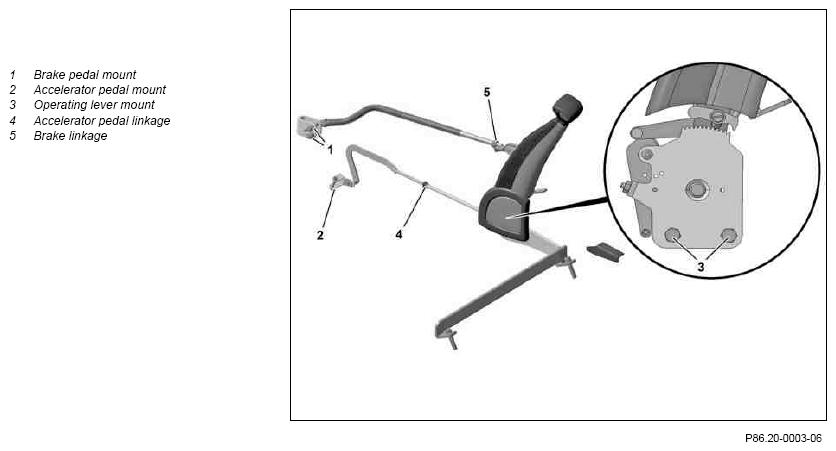

Multima 2 operating lever
| Check | |||
| 1 | Check threaded connections at accelerator and brake pedal (1, 2) for tight seating | Threaded connections (1, 2) not adequately secured: ↓ Tighten threaded connections (1, 2). |
|
| 2 | Check threaded connections at operating lever (3) for tight seating | Threaded connections (3) not adequately secured: ↓ Tighten threaded connections (3). |
|
| 3 | Check play in accelerator pedal linkage (4) | Play in accelerator pedal linkage (4) not correct: ↓ Adjust play in accelerator pedal linkage (4). |
|
| 4 | Check play in brake linkage (5) | Play in brake linkage (5) not correct: ↓ Adjust play in brake linkage (5). |
|
| Lubricate | |||
| 5 | Lubricate movable mounts at accelerator and brake pedal connections | ||
| 6 | Lubricate movable mount of accelerator pedal linkage at operating lever |
