Check accelerator pedal modification - AP86.20-P-8656C

WARNING: This page does not describe the selected car, but rather 176 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz S65 AMG, 2020 Mercedes-Benz GLA250, 2019 Mercedes-Benz SLC300, and 2019 Mercedes-Benz S65 AMG. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 156, 169, 172, 176, 204, 205, 207, 212, 217, 218, 221, 222, 242, 245, 246

(with driving aids ex factory)

Shown on MODEL 246

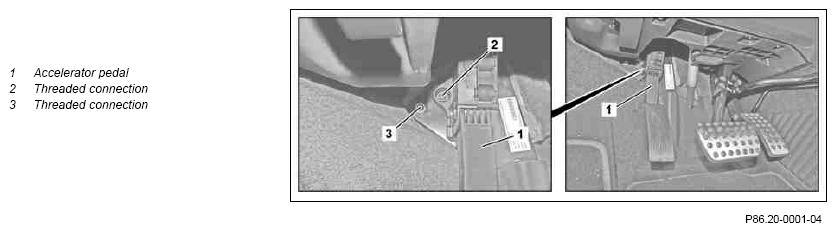

Fig 1: Identifying Accelerator Pedal & Threaded Connection - Shown On Model 246
G10038298Courtesy of MERCEDES-BENZ USA
INSPECT Check
1 Check that threaded connections (2, 3) at accelerator pedal (1) are tight Threaded connections (2, 3) not secured adequately:

Retighten threaded connections.
