Check all visible parts in engine compartment for damage and leaks - AP00.20-P-0055B

WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 190

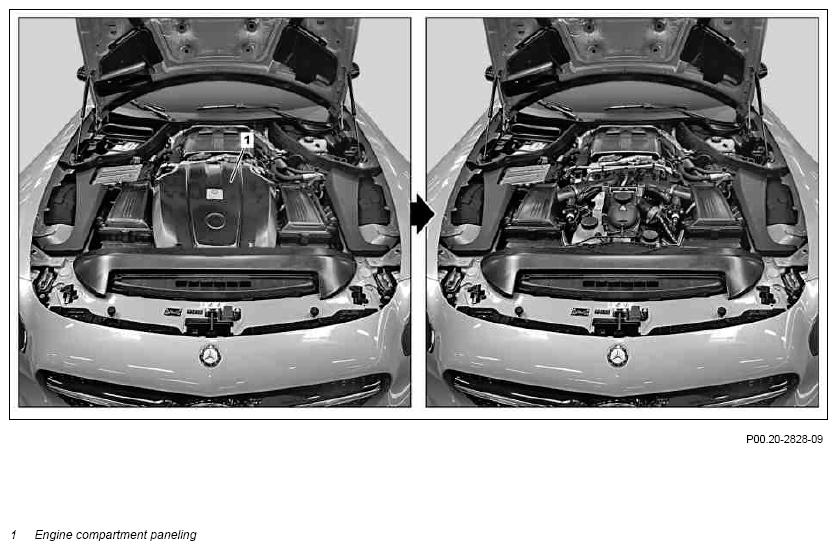

Fig 1: Identifying Engine Compartment Visible Parts

Courtesy of MERCEDES-BENZ USA

	Notes on evaluating leakages		AH00.00-N-0011-01A
	Preparatory activity
1	Open engine hood
	Open engine hood		AR88.40-P-1000RG
	Remove
2	Remove engine compartment covering (1)
	Check
3	Check that visible systems and components in engine compartment are in good condition, are not leaking and are attached securely	Engine and bolted-on major assemblies Exhaust system Cooling system Heater and air conditioning system Fuel system Steering Brake system
4	Check that visible lines and hoses in engine compartment are in good condition, are not leaking, are routed correctly and are attached securely	Engine and bolted-on major assemblies Exhaust system Cooling system Heater and air conditioning system Fuel system Steering Brake system Electrical components If there are problems: ↓ Rectify problem subject to separate repair order.
5	Check visible systems, components and body panels, lines and hoses in engine compartment on vehicle for damage, routing, leaks, mounting and corrosion		AP00.20-P-0054D
	Install
6	Install engine compartment paneling (1)
	Finishing activity
8	Close engine hood
	Close engine hood		AR88.40-P-1000RG
