Check all visible parts in engine compartment for damage and leaks - AP00.20-P-0055A

WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 217, 222

Shown on engine 278.9 in MODEL 222

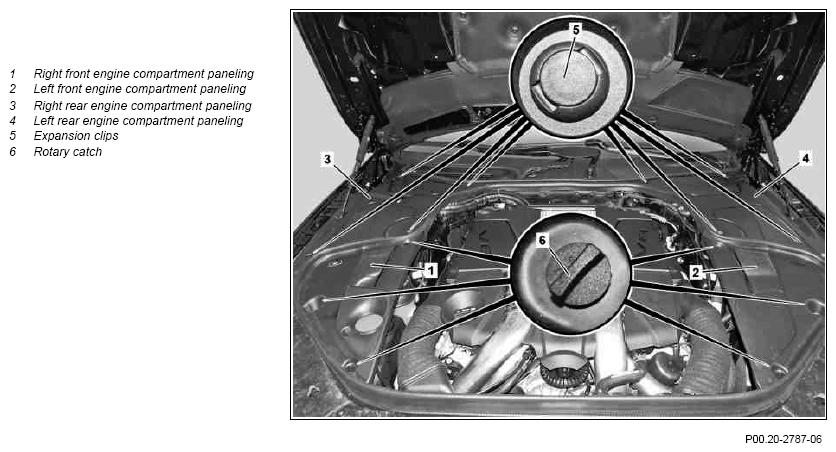

Fig 1: Identifying Engine Compartment Visible Parts - Shown On Engine 278.9
G10037771DANGERNOTESIMPORTANTIMPORTANTREMOVINGINSPECTIMPORTANTIMPORTANTINSTALLINGCourtesy of MERCEDES-BENZ USA
DANGER Risk of death  when touching components on vehicles with high-voltage on-board electrical system Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not  carry out any work on high-voltage on-board electrical systems. AS54.00-Z-0001-01A
NOTES Note on high-voltage on-board electrical system   AH54.00-P-0010-01A
IMPORTANT Evaluation of high-voltage components   AH54.00-P-6500-01SXH
IMPORTANT Notes on evaluating leakages   AH00.00-N-0011-01A
REMOVING Remove
1 Remove front engine compartment paneling on right (1) and left (2) by turning the rotary catches (6)
2 Remove rear engine compartment paneling on right (3) and left (4) by pulling the expansion clips (5)
INSPECT Check
3 Check that visible systems and components in engine compartment are in good condition, are not leaking and are attached securely IMPORTANT
  • Engine and bolted-on major assemblies and exhaust system
  • Hybrid components (equipment specific)
  • Cooling system
  • Heater and air conditioning system
  • Fuel system
  • Steering
  • Brake system

If there are problems:
↓
Rectify problem subject to separate repair order.
4 Check that visible lines and hoses in engine compartment are in good condition, are not leaking, are routed correctly and are attached securely IMPORTANT
  • Engine and bolted-on major assemblies and exhaust system
  • Hybrid components (equipment specific)
  • Cooling system
  • Heater and air conditioning system
  • Fuel system
  • Steering
  • Brake system
  • Clutch operating system
  • Electrical components

If there are problems:
↓
Rectify problem subject to separate repair order.
5 Check visible systems, components and body panels, lines and hoses in engine compartment on vehicle for damage, routing, leaks, mounting and corrosion   AP00.20-P-0054C
INSTALLING Install
6 Install rear engine compartment paneling on right (3) and left (4) and fasten with expansion clips (5)
7 Install front engine compartment paneling on right (1) and left (2) and fasten with rotary catch (6)
