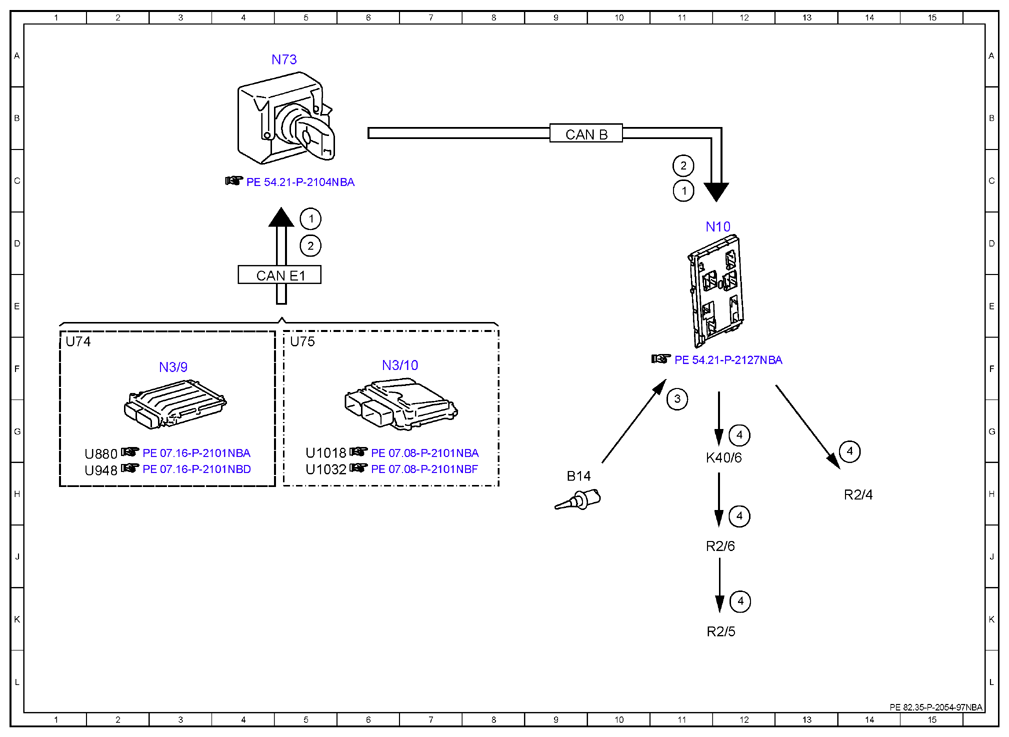

| 1 |
Engine running, signal |
5D |
| 1 |
Engine running, signal |
11C |
| 2 |
Drivetrain operational, signal |
5D |
| 2 |
Drivetrain operational, signal |
11C |
| 3 |
Outside temperature sensor, signal |
11G |
| 4 |
Spray nozzle hose heater, actuation |
14G |
| 4 |
Spray nozzle hose heater, actuation |
12G |
| 4 |
Spray nozzle hose heater, actuation |
12H |
| 4 |
Spray nozzle hose heater, actuation |
12K |
| B14 |
Outside temperature sensor |
9H |
| CAN B |
Interior CAN |
9B |
| CAN E1 |
Chassis CAN 1 |
4E |
| K40/6 |
Left fuse and relay module |
11H |
| N10 |
SAM control unit |
12D |
| N3/10 |
ME-SFI [ME] control unit |
6F |
| N3/9 |
CDI control unit |
3F |
| N73 |
Electronic ignition switch control unit |
4A |
| R2/4 |
Lower spray nozzle hose heater |
14H |
| R2/5 |
Upper spray nozzle hose heater |
11K |
| R2/6 |
Windshield washer system junction box |
11J |
| U1018 |
Valid for gasoline engine 276 |
5G |
| U1032 |
Valid for engine 278 and 157 |
5H |
| U74 |
Valid for diesel engines |
1F |
| U75 |
Valid for gasoline engines |
5F |
| U880 |
Valid for engine 642 |
1G |
| U948 |
Valid for diesel engine 651 |
1H |
