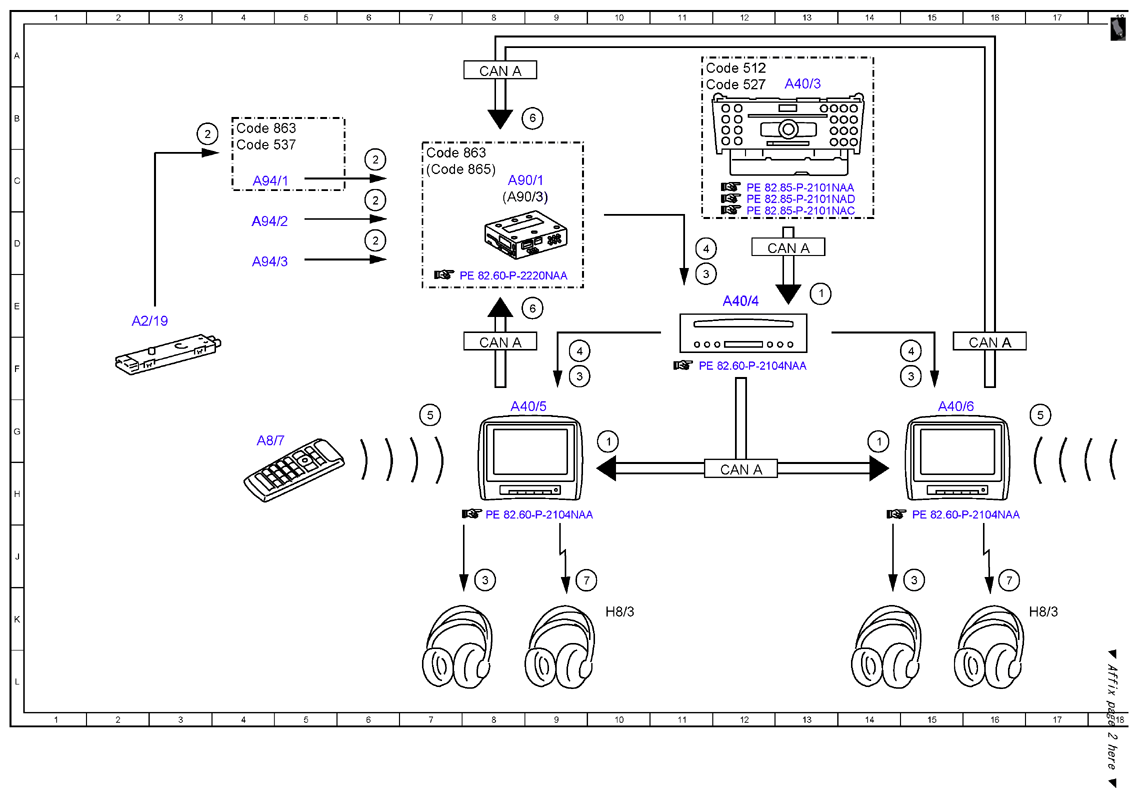

| 1 |
Telematics CAN active, signal |
10G |
| 1 |
Telematics CAN active, signal |
14G |
| 1 |
Telematics CAN active, signal |
13E |
| 2 |
TV, signal |
3B |
| 2 |
TV, signal |
6C |
| 2 |
TV, signal |
6D |
| 3 |
Analog audio signal, signal |
8J |
| 3 |
Analog audio signal, signal |
15J |
| 3 |
Analog audio signal, signal |
5J |
| 3 |
Analog audio signal, signal |
9F |
| 3 |
Analog audio signal, signal |
11D |
| 4 |
Analog picture signal, signal |
9F |
| 4 |
Analog picture signal, signal |
15F |
| 4 |
Analog picture signal, signal |
11D |
| 5 |
Infrared, signal |
7G |
| 5 |
Infrared, signal |
17G |
| 6 |
TV channel selection, signal |
9E |
| 6 |
TV channel selection, signal |
9B |
| 7 |
Radio frequency, signal |
9J |
| 7 |
Radio frequency, signal |
16J |
| A2/19 |
FM 2 and DAB antenna amplifier |
2E |
| A40/3 |
COMAND control unit |
13B |
| A40/4 |
DVD player |
12E |
| A40/5 |
Left rear display |
8G |
| A40/6 |
Right rear display |
15G |

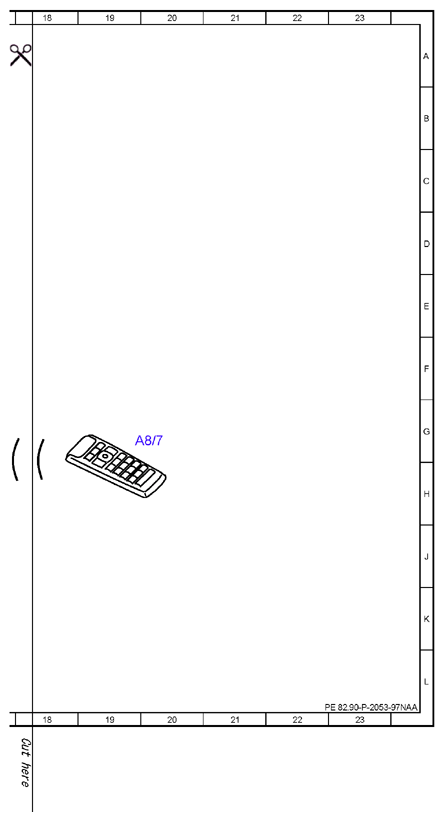

| A8/7 |
Remote control |
4G |
| A8/7 |
Remote control |
20G |
| A90/1 |
TV tuner (analog/digital) |
8C |
| A90/3 |
TV digital tuner |
8C |
| A94/1 |
TV 1 antenna amplifier |
4C |
| A94/2 |
TV 2 antenna amplifier |
4D |
| A94/3 |
TV 3 antenna amplifier |
4D |
| CAN A |
Telematics CAN |
12H |
| CAN A |
Telematics CAN |
8F |
| CAN A |
Telematics CAN |
16F |
| CAN A |
Telematics CAN |
13D |
| CAN A |
Telematics CAN |
8A |
| Code 512 |
COMAND APS with DVD changer |
11A |
| Code 527 |
COMAND APS (with navigation) |
11B |
| Code 537 |
Digital radio |
4C |
| Code 863 |
Digital/analog TV tuner |
7C |
| Code 863 |
Digital/analog TV tuner |
4B |
| Code 865 |
TV tuner |
7C |
| H8/3 |
Radio frequency headphones |
10K |
| H8/3 |
Radio frequency headphones |
17K |
