Wiring Diagram Of MOST Bus - PE82.00-P-2710-97NBA

Code:	Designation:	Position:
A0	Color code key	32L
A2	Radio	13A
A40/3	COMAND control unit	13A
A90/4	Tuner unit	4L
A90/4	Tuner unit	22L
Code 505	Radio 20 NTG5, non-navigation-capable	9A
Code 522	Audio 20 radio	9A
Code 531	COMAND APS	9B
Code 536	SIRIUS satellite radio	13F
Code 536	SIRIUS satellite radio	1F
Code 537	Digital radio	13G
Code 537	Digital radio	1F
Code 810	Sound system	7F
Code 810	Sound system	13F
Code 811	Extended sound system	7F
Code 811	Extended sound system	13F
Code 865	TV tuner	1F
Code 865	TV tuner	13G
N40/3	Sound system amplifier control unit	10L
N40/3	Sound system amplifier control unit	16L
U154	Valid for 166.0	19H
U155	Valid for 166.8	20H
U215	Valid for model series 292	19H
Z35/10	MOST wake-up signal connector sleeve	2G
Z35/10	MOST wake-up signal connector sleeve	8G
Z35/10	MOST wake-up signal connector sleeve	14G

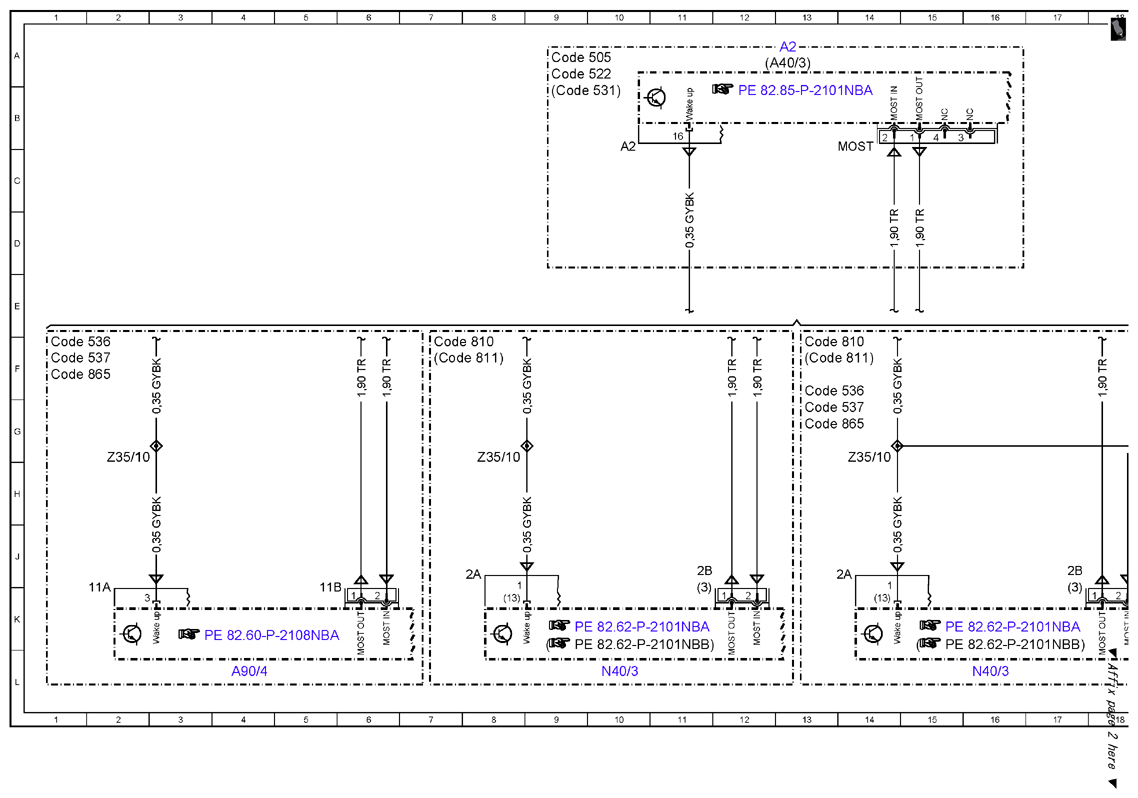

Fig 1: Most Bus - Wiring Diagram (1 Of 2)

Courtesy of MERCEDES-BENZ USA

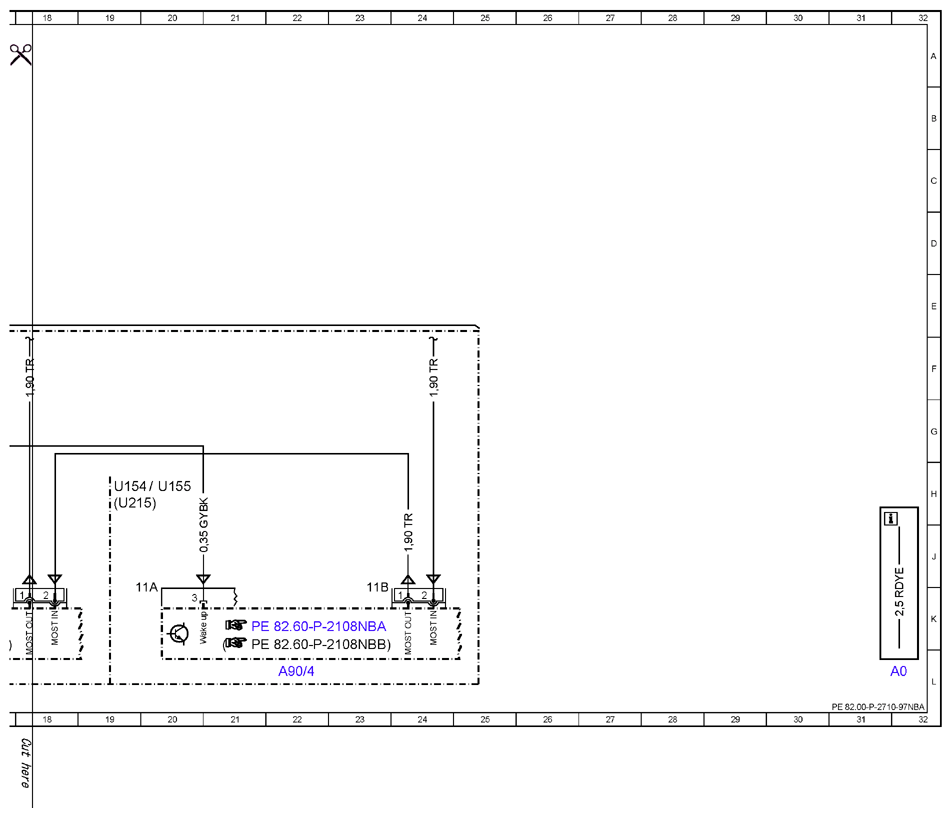

Fig 2: Most Bus - Wiring Diagram (2 Of 2)

Courtesy of MERCEDES-BENZ USA
