Remove/Install Washer Fluid Reservoir Of Windshield Washer System - AR82.35-P-6000GZ

MODEL 164, 166

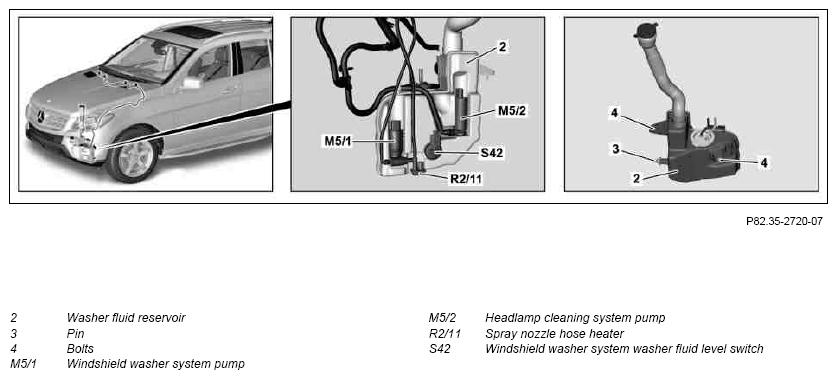

Fig 1: Identifying Washer Fluid Reservoir Of Windshield Washer System Remove/Install Components

Courtesy of MERCEDES-BENZ USA

Model 164.1

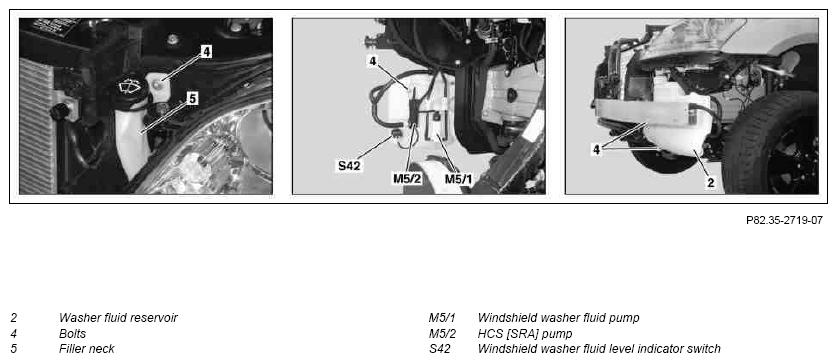

Fig 2: Identifying Washer Fluid Reservoir Of Windshield Washer System Remove/Install Components - Shown On Model 166.073

Courtesy of MERCEDES-BENZ USA

Shown on model 166.073

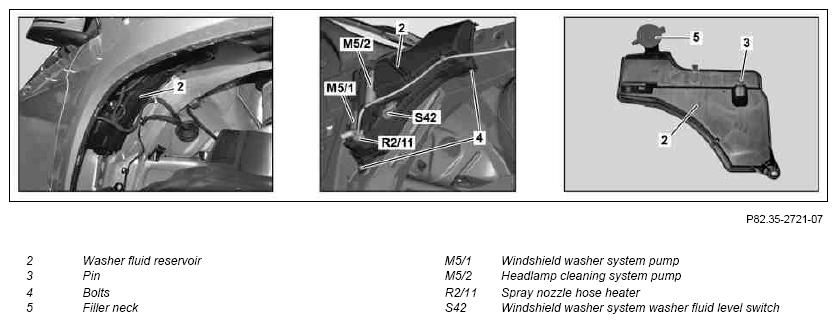

Fig 3: Identifying Washer Fluid Reservoir Of Windshield Washer System Remove/Install Components - Shown On Model 166.074

Courtesy of MERCEDES-BENZ USA

Shown on model 166.074

	Remove/install
1	Remove front bumper	MODEL 164	AR88.20-P-2000GZ
		MODEL 166 (except 166.074)
		MODEL 166 (except 166.874)	AR88.20-P-2000GQ
2	Open engine hood	MODEL 166.074/874	AR88.40-P-1000GQ
3	Remove rear section of fender liner in right front fender	MODEL 166.074/874	AR88.10-P-1300GQ
4	Unscrew screws/bolts (4) and remove washer fluid reservoir (2)	MODEL 166.074/874 Unhook washer fluid reservoir (2) from upper longitudinal member and remove. MODEL 166 (except 166.074) MODEL 166 (except 166.874) Pull washer fluid reservoir (2) out of wheel well and remove. MODEL 166 Installation:  Insert pin (3) of washer fluid reservoir (2) into upper longitudinal member and wheel well.
		Bolt, washer fluid reservoir to front end assembly	*BA82.35-P-1001-01B
5	Remove filler neck (5)	MODEL 164, 166.874
6	Unclip electrical lines and washer fluid hoses from washer fluid reservoir (2)	Ensure that electrical lines and washer fluid hoses are routed correctly. If necessary, replace cable ties.
7	Release and disconnect electrical connection from pump (M5/1) and switch (S42)
8	Release and disconnect electrical connection of pump (M5/2) and detach washer fluid hose	MODEL 164, 166 with CODE 600 (Headlamp cleaning system) Ensure that washer fluid hoses are correctly engaged. Leaks are prevented in this way. Collect washer fluid which flows out.
9	Release and disconnect electrical connection of spray nozzle hose heater (R2/11) and detach washer fluid hoses from heat exchanger	MODEL 166 with CODE 875 (Heated windscreen washer system) Collect washer fluid which flows out.
10	Detach washer fluid hoses from pump (M5/1)	Ensure that washer fluid hoses are correctly engaged. Leaks are prevented in this way. Collect washer fluid which flows out.
11	Remove washer fluid reservoir (2) downwards
12	Install in the reverse order
13	Fill up washer fluid reservoir (2)
			AP82.35-P-8210GZ
14	Perform function check of windshield washer system and headlamp cleaning system

WINDSHIELD WASHER SYSTEM

Number	Designation		MODEL 164.1/8	MODEL 166
BA82.35-P-1001-01B	Bolt, washer fluid reservoir to front end assembly	Nm	10	4
