| A0 |
Color code key |
80L |
| B51/5 |
Left pop-out window anti-pinch protection contact strip |
38L |
| B51/5x1 |
Left pop-out window anti-pinch protection contact strip electrical connector |
38J |
| B51/6 |
Right pop-out window anti-pinch protection contact strip |
41L |
| B51/6x1 |
Right pop-out window anti-pinch protection contact strip electrical connector |
40J |
| CAN B |
Interior CAN |
9K |
| Code 218 |
Backup camera |
19G |
| Code 501 |
360 degree camera |
19F |
| Code 501 |
360 degree camera |
19F |
| Code 847 |
3rd seat row |
77A |
| Code 872 |
Left and right rear seat heaters |
56E |
| Code 872 |
Left and right rear seat heaters |
61A |
| Code 872 |
Left and right rear seat heaters |
69A |
| Code 876 |
Interior lights package |
47E |
| E17/47 |
Left front illuminated door sill molding |
48L |
| E17/47x1 |
Left front illuminated door sill molding electrical connector |
48J |
| E17/48 |
Right front illuminated door sill molding |
50L |
| E17/48x1 |
Right front illuminated door sill molding electrical connector |
49J |
| E40 |
Tailgate ambient lamp |
16L |
| E43/7 |
Driver-side instrument panel ambiance illumination |
52L |
| E43/8 |
Passenger-side instrument panel ambiance illumination |
53L |

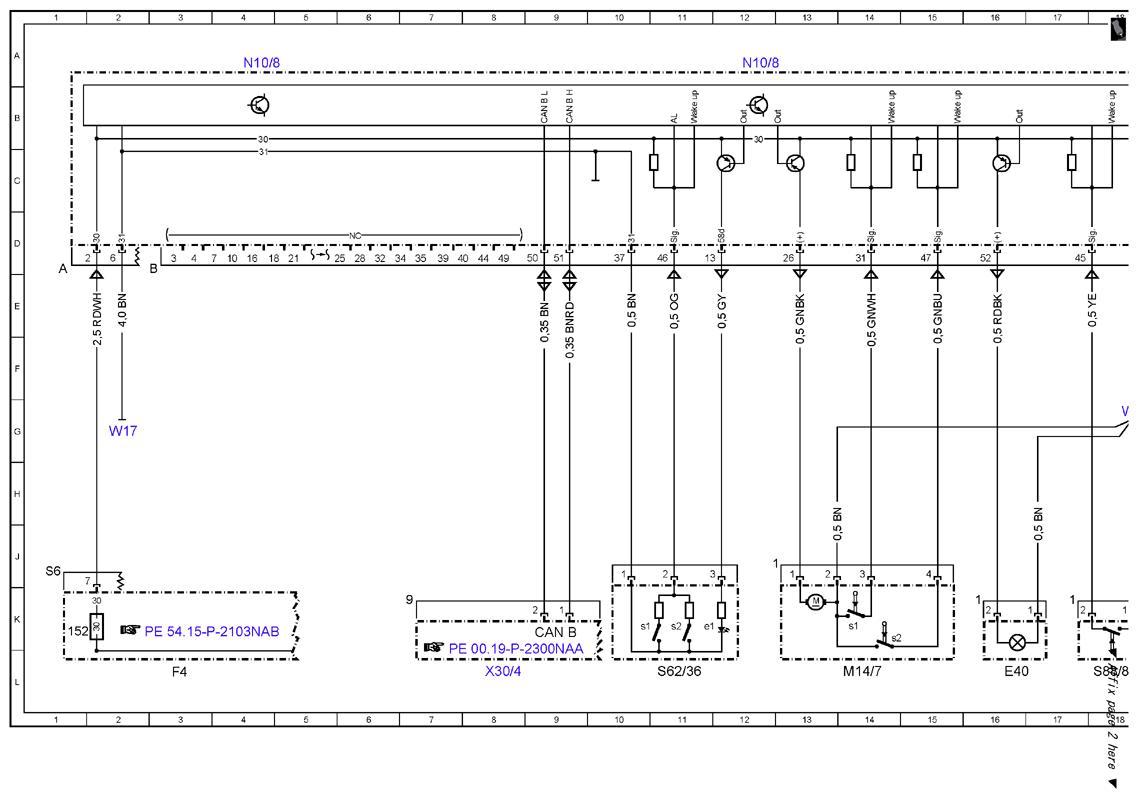

| F33 |
Battery compartment prefuse box |
59L |
| F33f55 |
Fuse 55 |
58L |
| F4 |
Rear fuse box |
3L |
| F4f152 |
Fuse 152 |
1K |
| M14/31 |
Tailgate locking element |
45L |
| M14/7 |
Tailgate central locking motor |
14L |
| M14/7s1 |
Tailgate rotary tumbler switch |
14K |
| M14/7s2 |
Liftgate locking pawl switch |
14K |
| M21/8 |
Left vent window motor |
37L |
| M21/9 |
Right vent window motor |
40L |

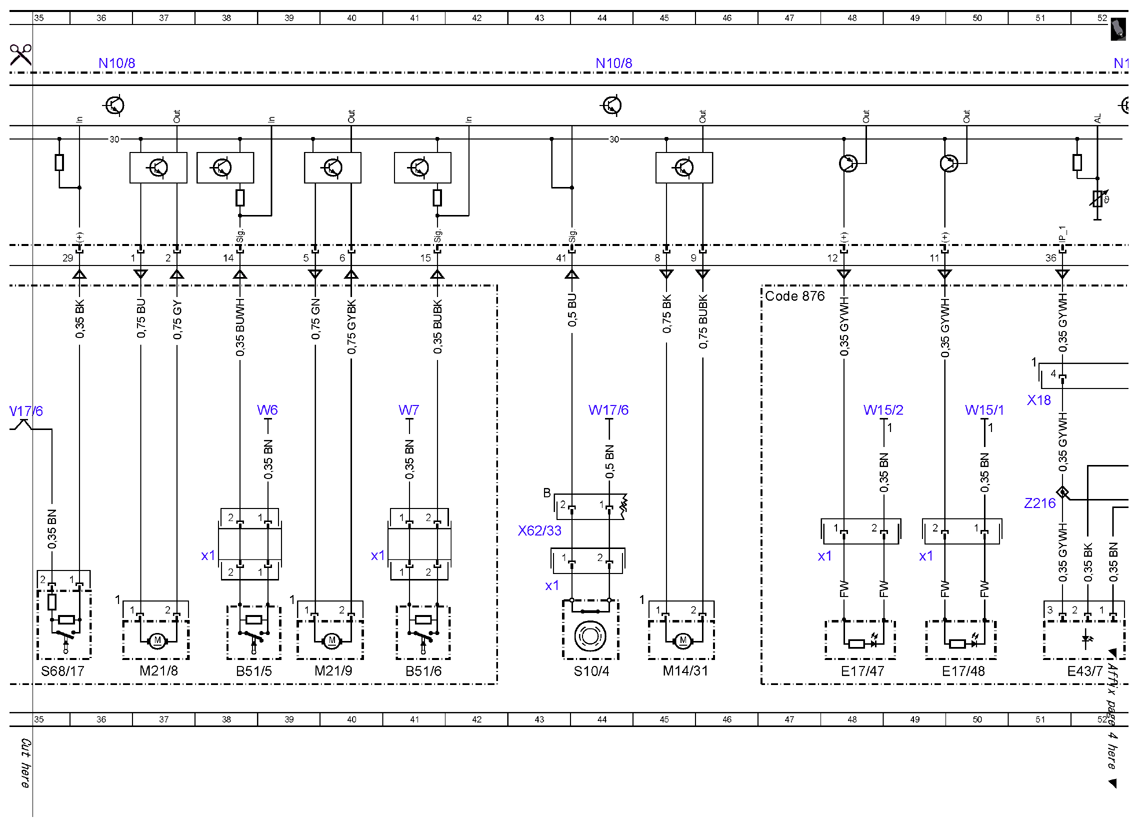

| M35/2 |
Rear camera cover motor |
21L |
| M35/2s1 |
Rear camera cover motor switch |
22L |
| N10/8 |
Rear control unit |
4A |
| N10/8 |
Rear control unit |
12A |
| N10/8 |
Rear control unit |
28A |
| N10/8 |
Rear control unit |
20A |
| N10/8 |
Rear control unit |
36A |
| N10/8 |
Rear control unit |
44A |
| N10/8 |
Rear control unit |
52A |
| N10/8 |
Rear control unit |
60A |
| N10/8 |
Rear control unit |
68A |
| N10/8 |
Rear control unit |
75A |

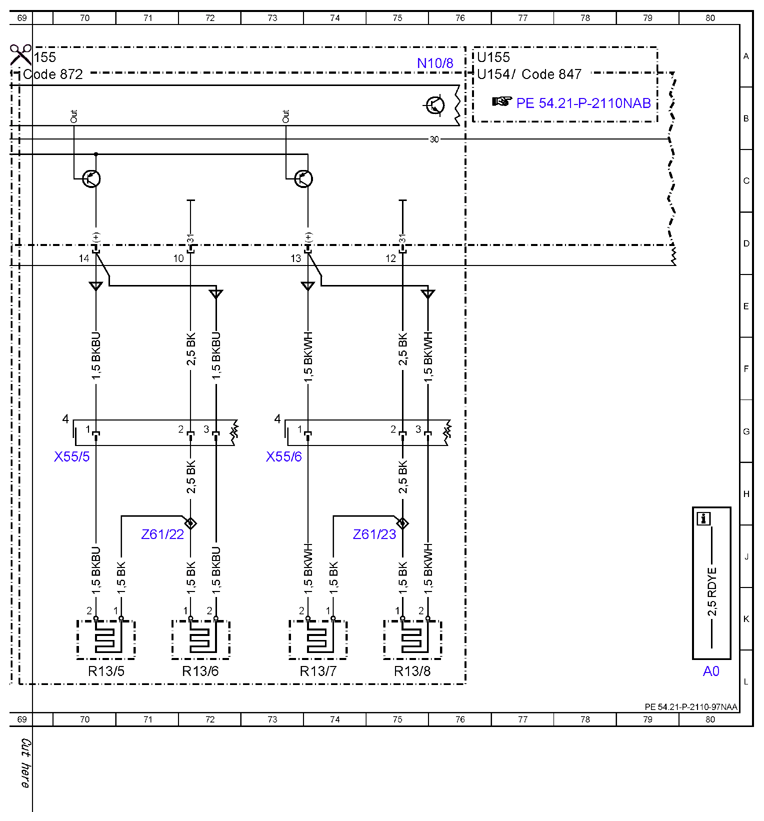

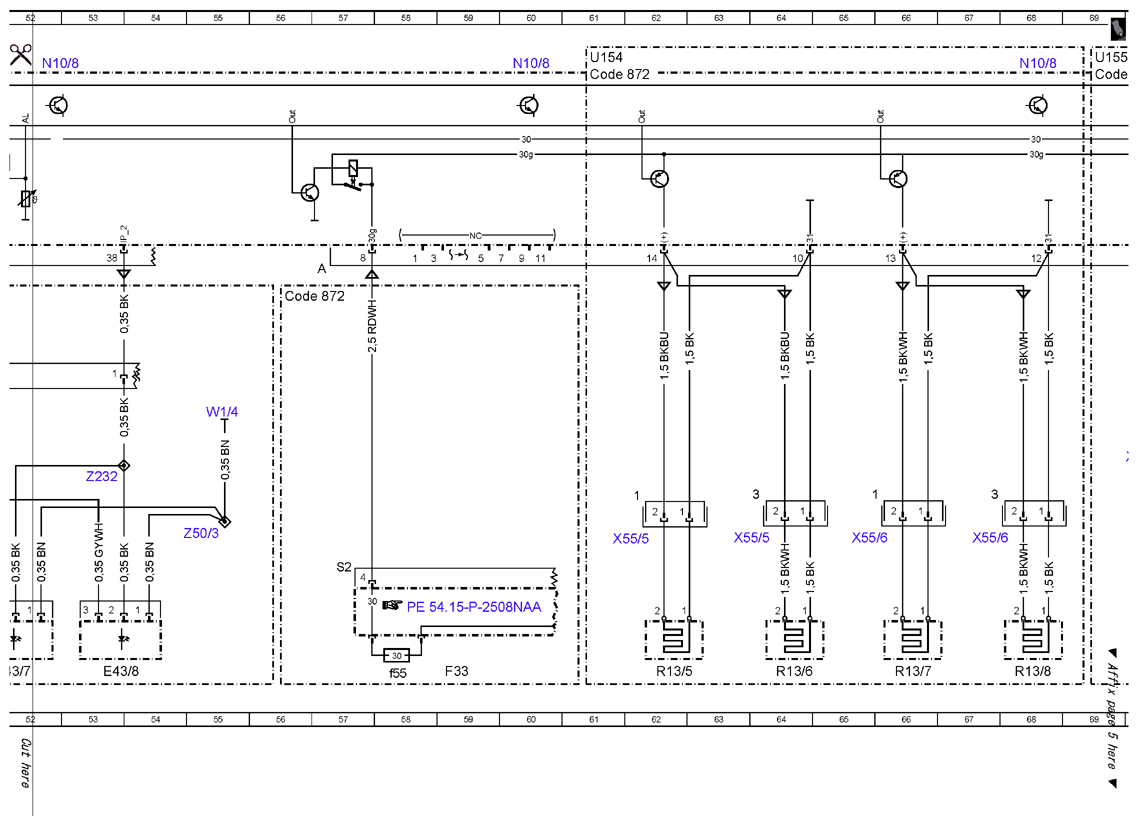

| R13/5 |
Left rear seat sitting surface heated cushion |
62L |
| R13/5 |
Left rear seat sitting surface heated cushion |
70L |
| R13/6 |
Left rear backrest heated cushion |
64L |
| R13/6 |
Left rear backrest heated cushion |
72L |
| R13/7 |
Right rear seat sitting surface heated cushion |
66L |
| R13/7 |
Right rear seat sitting surface heated cushion |
74L |
| R13/8 |
Right rear backrest heater pad |
68L |
| R13/8 |
Right rear backrest heater pad |
75L |
| S10/4 |
Right rear brake wear sensor |
44L |
| S10/4x1 |
Right rear brake wear sensor electrical connector |
43K |
| S62/36 |
Tailgate control button |
11L |
| S62/36e1 |
Liftgate control button symbol illumination |
11K |
| S62/36s1 |
Close liftgate button |
10K |
| S62/36s2 |
Close and lock liftgate button |
11K |
| S68/14 |
Center rear seat belt buckle switch |
25L |
| S68/14 |
Center rear seat belt buckle switch |
30L |
| S68/14x1 |
Center rear seat belt buckle switch electrical connector |
25K |
| S68/14x1 |
Center rear seat belt buckle switch electrical connector |
29K |
| S68/16 |
Left third row seat belt buckle switch |
34L |
| S68/17 |
Right third row seat belt buckle switch |
35L |

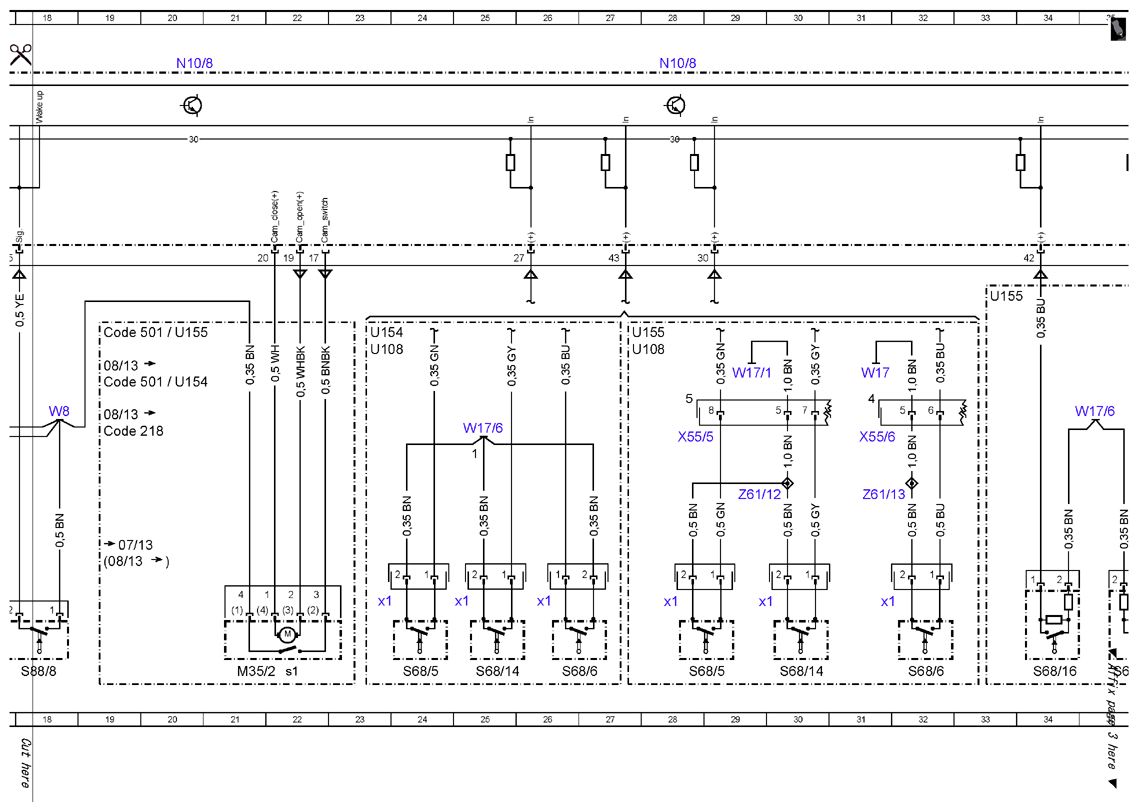

| S68/5 |
Left rear seat belt buckle switch |
28L |
| S68/5 |
Left rear seat belt buckle switch |
24L |
| S68/5x1 |
Left rear seat belt buckle switch electrical connector |
23K |
| S68/5x1 |
Left rear seat belt buckle switch electrical connector |
28K |
| S68/6 |
Right rear seat belt buckle switch |
26L |
| S68/6 |
Right rear seat belt buckle switch |
32L |
| S68/6x1 |
Right rear seat belt buckle switch electrical connector |
26K |
| S68/6x1 |
Right rear seat belt buckle switch electrical connector |
31K |
| S88/8 |
Tailgate external operation switch |
18L |
| U108 |
Valid for rear seat belt buckles |
23F |
| U108 |
Valid for rear seat belt buckles |
27F |
| U154 |
Valid for 166.0 |
23F |
| U154 |
Valid for 166.0 |
61A |
| U154 |
Valid for 166.0 |
20F |
| U154 |
Valid for 166.0 |
76A |
| U155 |
Valid for 166.8 |
27F |
| U155 |
Valid for 166.8 |
33E |
| U155 |
Valid for 166.8 |
69A |
| U155 |
Valid for 166.8 |
76A |
| U155 |
Valid for 166.8 |
20F |
| W1/4 |
Cockpit ground point |
55G |
| W15/1 |
Right footwell ground point |
50G |
| W15/2 |
Left footwell ground point |
48G |
| W17 |
Right rear seat ground point |
31F |
| W17 |
Right rear seat ground point |
2G |
| W17/1 |
Left rear seat ground point |
29F |
| W17/6 |
Rear seat crossmember ground point |
25G |
| W17/6 |
Rear seat crossmember ground point |
35G |
| W17/6 |
Rear seat crossmember ground point |
44G |
| W6 |
Inner left D-pillar ground point |
39G |
| W7 |
Right rear center section ground point |
41G |
| W8 |
Liftgate ground point |
18G |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
51G |
| X30/4 |
Right potential distributor electrical connector (CAN) |
8L |
| X55/5 |
Left rear seat adjustment connector block |
28G |
| X55/5 |
Left rear seat adjustment connector block |
62J |
| X55/5 |
Left rear seat adjustment connector block |
64J |
| X55/5 |
Left rear seat adjustment connector block |
70G |
| X55/6 |
Right rear seat adjustment connector block |
31G |
| X55/6 |
Right rear seat adjustment connector block |
65J |
| X55/6 |
Right rear seat adjustment connector block |
67J |
| X55/6 |
Right rear seat adjustment connector block |
73G |
| X62/33 |
Rear axle electrical connector, right distributor |
43J |
| Z216 |
Multi-color ambiance illumination connector sleeve |
51H |
| Z232 |
Ambiance illumination connector sleeve |
53H |
| Z50/3 |
Circuit 31 instrument panel connector sleeve |
55J |
| Z61/12 |
Left circuit 31 2nd seat row connector sleeve |
29H |
| Z61/13 |
Right circuit 31 2nd seat row connector sleeve |
31H |
| Z61/22 |
Left 2nd seat row seat heater ground line connector sleeve |
71J |
| Z61/23 |
Right 2nd seat row seat heater ground line connector sleeve |
75J |
