Remove/install brake booster - AR43.10-P-0350GQ

MODEL 166

Shows model 166.057

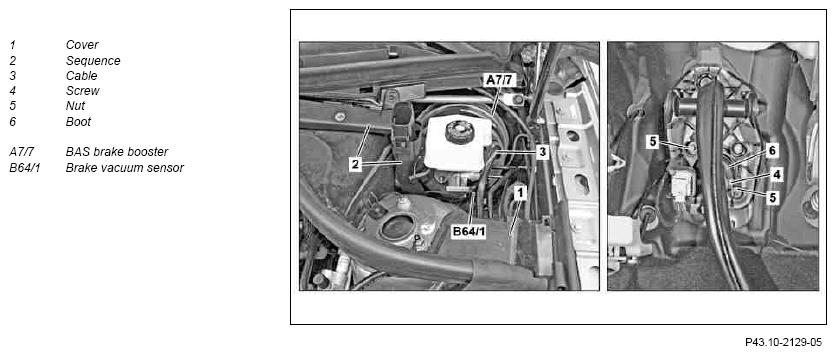

Fig 1: Identifying Brake Booster Remove/Install Components - Shows Model 166.057

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Set windshield wipers to end position
2	Remove brake master cylinder		AR42.10-P-0310GZ
3	Remove cover (1)
4	Remove drain (2)
5	Detach line (3) from BAS brake booster (A7/7)	Replace seal plug of line (3) when replacing BAS brake booster (A7/7).
6	Release and detach electrical connector from brake vacuum sensor (B64/1)
7	Remove left cover below dashboard		AR68.10-P-1500GQ
8	Remove bolt (4)	Replace bolt (4).
			*BA43.10-P-1002-01G
9	Unscrew nuts (5).		*BA43.10-P-1001-01G
10	Take out BAS brake booster (A7/7)	Do not deform the brake lines and do not damage the boot (6). Replace seal between BAS brake booster (A7/7) and body.
11	Install in the reverse order

BRAKE BOOSTER

Number	Designation		Model 166
BA43.10-P-1001-01G	Nut, brake booster carrier to front end	Nm	20
BA43.10-P-1002-01G	Bolts, brake pedal to brake booster	Nm	20
