Remove/install vacuum pump - AR43.05-P-1320MLJ
MODEL 166 with ENGINE 157, 278
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| Risk of injury to skin and eyes caused by handling hot or glowing objects | Wear safety gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| 1 | Open engine hood and raise to vertical position | Model 166.0 | AR88.40-P-1000GQ |
| 2 | Remove engine cover | ||

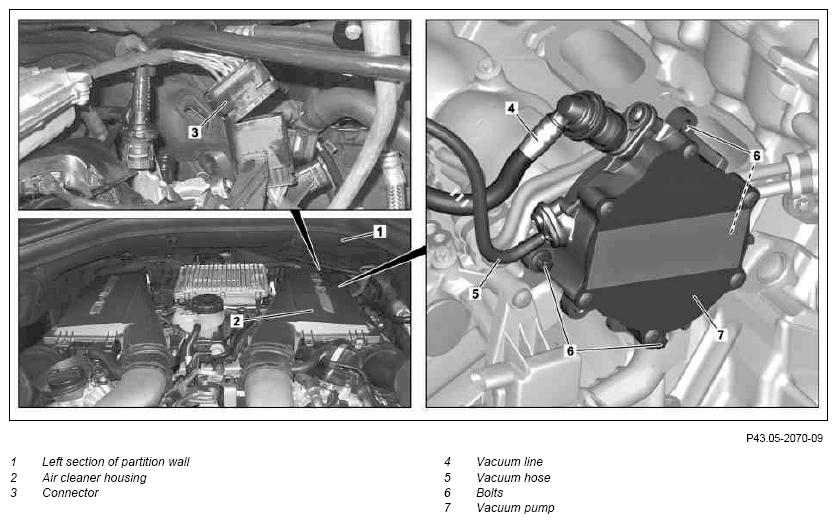

| 3 | Remove left section of partition wall (1) | ||
| 4 | Remove air filter housing (2) on left | ||
| 5 | Detach connector (3) from engine wiring harness | ||
| 6 | Detach vacuum line (4) from vacuum pump (7) | ||
| 7 | Detach vacuum hose (5) from vacuum pump (7) | ||
| 8 | Remove bolts (6) from vacuum pump (7) | ||
| *BA43.05-P-1001-01K | |||
| 9 | Remove vacuum pump (7) upwards | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 10 | Test run engine and carry out leak check |
VACUUM PUMP
| Number | Designation | Engine 157 | Engine 278 | |
|---|---|---|---|---|
| BA43.05-P-1001-01K | Bolt, vacuum pump to cylinder head/cylinder head cover | Nm | 9 | 9 |
