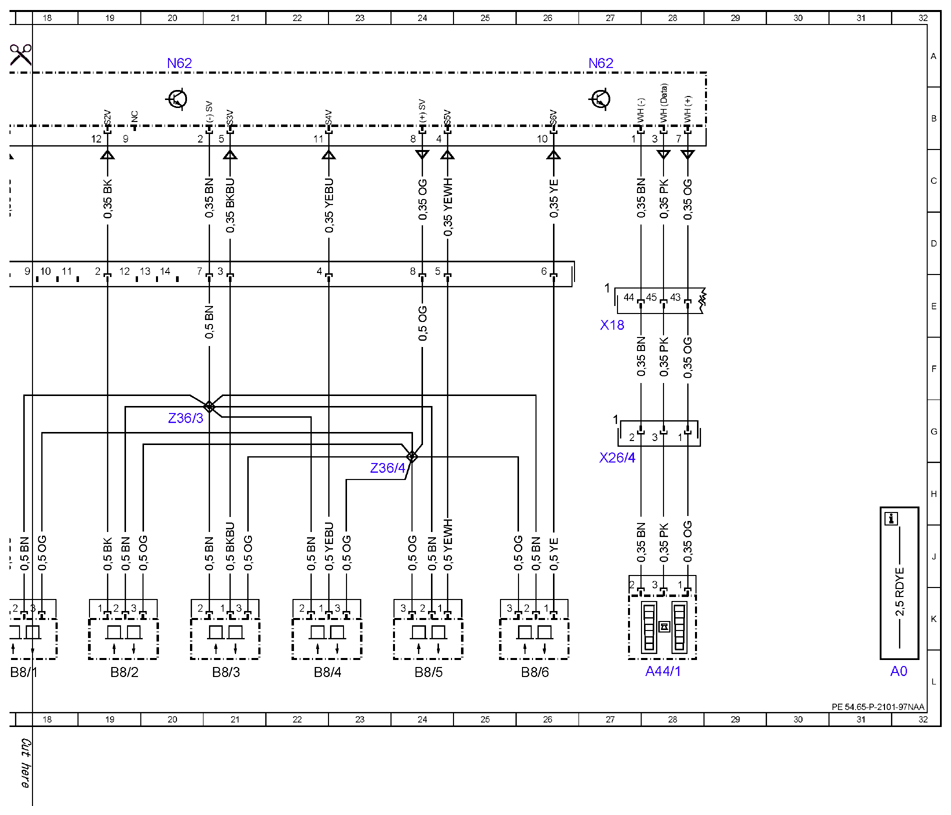

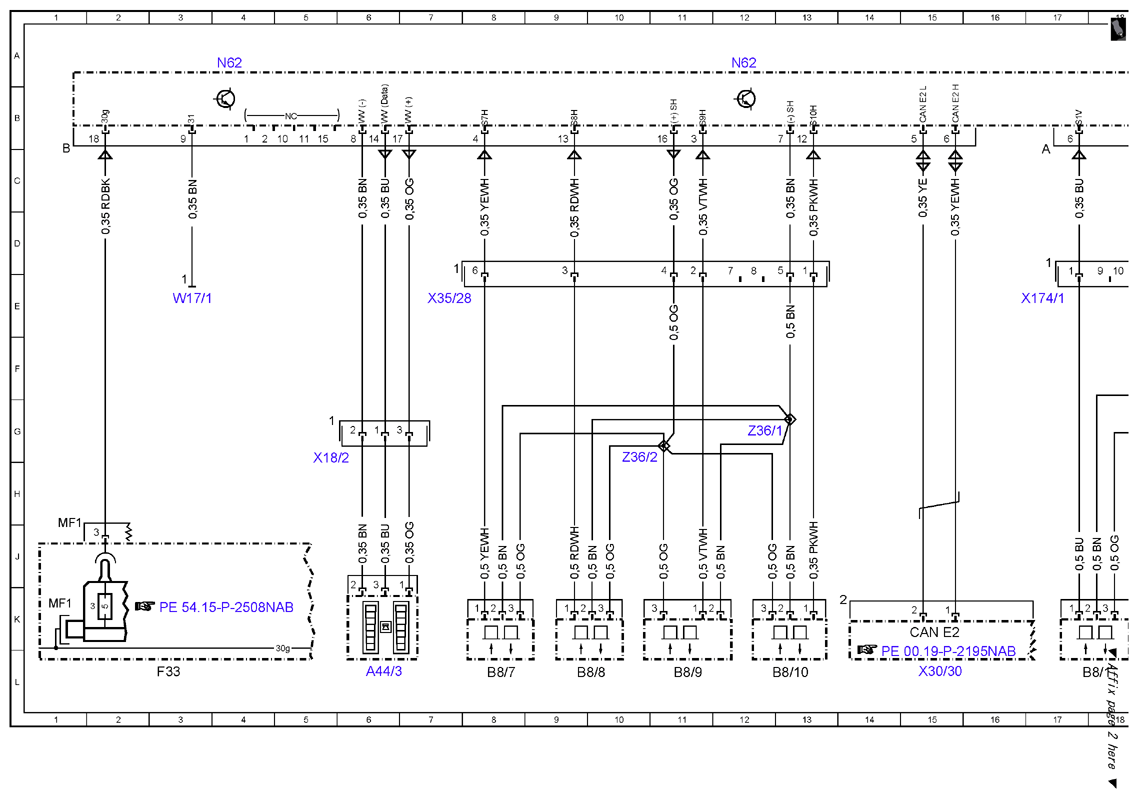

| A0 |
Color code key |
32L |
| A44/1 |
Front parking system warning indicator |
28L |
| A44/3 |
Rear parking system warning indicator |
6L |
| B8/1 |
Outer left front parking system distance sensor |
18L |
| B8/10 |
Outer left rear parking system distance sensor |
13L |
| B8/2 |
Center left front parking system distance sensor |
19L |
| B8/3 |
Inner left front parking system distance sensor |
21L |
| B8/4 |
Inner right front parking system distance sensor |
22L |
| B8/5 |
Center right front parking system distance sensor |
24L |
| B8/6 |
Outer right front parking system distance sensor |
26L |
| B8/7 |
Outer right rear parking system distance sensor |
8L |
| B8/8 |
Inner right rear parking system distance sensor |
9L |
| B8/9 |
Inner left rear parking system distance sensor |
11L |
| CAN E2 |
Chassis CAN 2 |
15K |
| F33 |
Battery compartment prefuse box |
3L |
| F33MF1 |
Multiple fuse 1 |
1K |
| N62 |
Parking system control unit |
4A |
| N62 |
Parking system control unit |
12A |
| N62 |
Parking system control unit |
20A |
| N62 |
Parking system control unit |
27A |
| W17/1 |
Left rear seat ground point |
3E |
| X174/1 |
Vehicle interior/front bumper electrical connector |
17E |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
27E |
| X18/2 |
Vehicle interior/roof electrical connector |
5H |
| X26/4 |
Cockpit adapter wiring harness electrical connector |
27H |
| X30/30 |
Vehicle floor chassis CAN E2 potential distributor electrical connector |
15L |
| X35/28 |
Rear bumper parking system electrical connector |
7E |
| Z36/1 |
Rear parking system sensors ground line connector sleeve |
12G |
| Z36/2 |
Rear parking system sensors positive line connector sleeve |
10G |
| Z36/3 |
Front parking system sensors ground line connector sleeve |
20G |
| Z36/4 |
Front parking system sensors positive line connector sleeve |
23H |
