Remove/Install Rear Control Unit - AR54.21-P-2009GQA
MODEL 166.8
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Connect STAR DIAGNOSIS and conduct initial startup of rear control unit (N10/8) | When replacing rear control unit (N108) | |
| AD00.00-P-2000-04A | |||
| 2 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | ||
| 3 | Remove right side of panel in trunk | AR68.30-P-4800GQX | |
| 4 | Release and disconnect electrical connectors (2) | ||

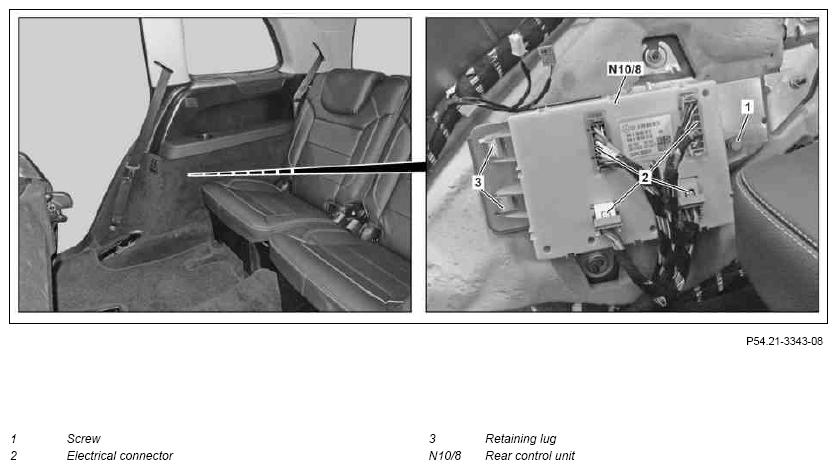

| 5 | Remove bolt (1) | ||
| 6 | Pull rear control unit (N10/8) out of retaining lugs (3) and remove | ||
| 7 | Install in the reverse order |
