Remove/Install Pyrofuse - AR54.10-P-1180GQ

MODEL 166

Shows model 166.024

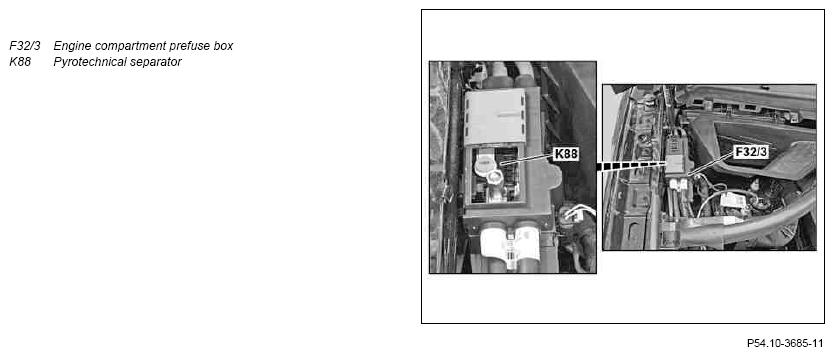

Fig 1: Identifying Pyrofuse Remove/Install Components - Shows Model 166.024

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove engine compartment prefuse box (F32/3)	The pyrotechnical partition grille (K88) is integrated into the engine compartment prefuse box (F32/3) and it can be separately removed or replaced.	AR54.15-P-1330GQ
2	Install in the reverse order
3	Read out and erase the fault memory using Star Diagnosis		AD00.00-P-2000-04A
