Component description for Audio/COMAND display - GF54.30-P-6150GR
MODEL 166 up to model year 2016
Shown on model 166.0

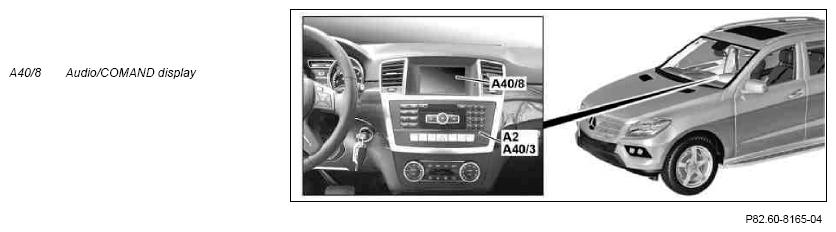

Location
The Audio/COMAND display is fitted to the top center of the instrument panel.
Tasks
The Audio/COMAND display serves the uniform depiction of user-relevant navigation, control and information windows as well as the depiction for video, TV and Internet applications, if present on the vehicle.
Audio/COMAND display with CODE 867 (SPLITVIEW)

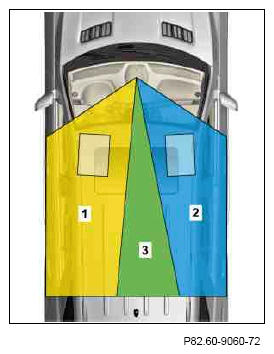

Moreover, the Audio/COMAND display makes possible the presentation of two different views at the same time. This function enables the driver and front passenger to access video picture information or vehicle system information at the same time and independently from one another (dual viewing mode). The operation of the Audio/COMAND display for the front passenger occurs using a remote control (the signals are read in by the COMAND controller unit (A40/3)). A uniform picture can be output via a mono output mode. Due to the design of the Audio/COMAND display, the visual range of the driver (1) and visual range of the front passenger (2) are defined in a fixed manner and an insufficient picture quality is possible in the overlap area (3) of the visual ranges. In order to prevent overheating of the Audio/COMAND display, it is cooled by an internal blower motor. Cooling is controlled internally in the Audio/COMAND display. The temperature of the Audio/COMAND display is kept below 85 °C during operation and below 95 °C with the vehicle at a standstill.
The Audio/COMAND display also has the following tasks:
- Reading in of signals
- Evaluation of input factors
Reading in of signals
The input factors are read in and displayed via the following connections:
- Telematics CAN (CAN A)
- Low voltage differential signal (LVDS) connection
Telematics CAN
The Audio/COMAND display receives control signals (e.g. brightness, on or off display) over the telematics CAN.
Low voltage differential signal (LVDS) connection
The Audio/COMAND display receives all the information for displaying appropriate content from the audio equipment, with CODE 867 (SPLITVIEW) from the COMAND controller unit over the LVDS interface.
Evaluation of input factors
The input factors are evaluated by the integrated microprocessor and the relevant components are then actuated internally.
Design
Audio/COMAND display with CODE 867 (SPLITVIEW)
The Audio/COMAND display is an 8 - Thin Film Transistor (TFT) color SPLITVIEW display in a 16:9 with a resolution of 800 X480 pixels. In order to prevent damage to the Audio/COMAND display, it is protected by a tinted acrylic glass lens.
It is not possible to swivel the Audio/COMAND display.
Variants
Variants except CODE 867 (SPLITVIEW)
"ENTRY" variant (with CODE 510 (Audio 20 incl. CD changer) or with CODE 523 (MB Audio 20 radio))
- Fixed 5.8 TFT color screen
- 400X240 pixel resolution
"High" variant (with CODE 512 (COMAND APS incl. DVD changer), with CODE 527 (COMAND APS with single DVD drive (with navigation)) or CODE 528 (COMAND incl.DVD changer))
- Fixed 7 TFT color screen
- 800X480 pixel resolution
Variants with CODE 867 (SPLITVIEW)
- Left-hand drive vehicle
- Right-hand drive vehicle
The CODE 867 (SPLITVIEW) can be deactivated at the factory for vehicles with CODE 494 (USA version) as the function is not yet legally allowed in all regions. The activation can be performed by the dealer, however, if it conforms to the law.
| Wiring diagram for Audio/COMAND display | A40/8 | PE82.00-P-2080-97NAA |
