Adjust camber and caster at the front axle - AR40.20-P-0263GQ

MODEL 166

MODIFICATION NOTES

13.6.13	Permissible difference in caster between right and left side of vehicle		BE40.20-P-1001-20G*BE40.20-P-1001-20G
13.6.13	Absolute caster tolerance		BE40.20-P-1003-20G*BE40.20-P-1003-20G

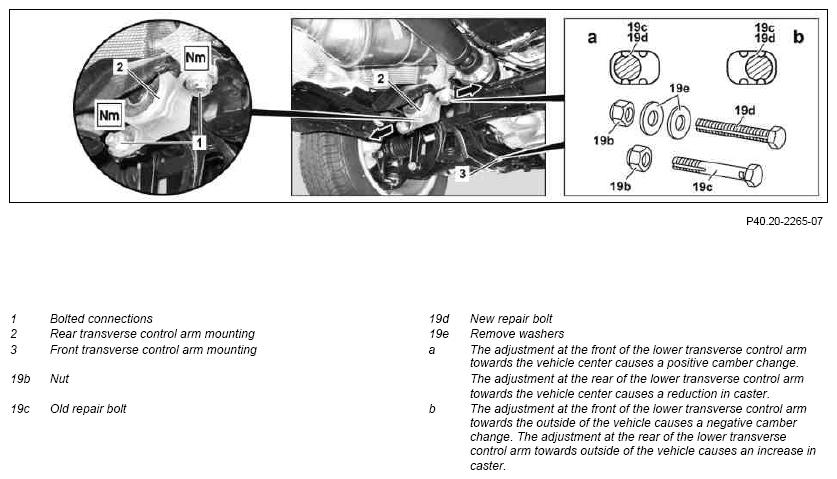

Fig 1: Identifying Front Axle Components - Shown On Model 164

G09982411

Courtesy of MERCEDES-BENZ USA

Shown on left front-axle half, model 164

	Adjust
1	Loosen bolted connections (1) on transverse control arm mountings (2, 3)
2	Remove bolts of stabilizer bar bracket to front axle carrier and swivel stabilizer bar downwards	Only if camber has to be corrected at front transverse control arm mounting (3). The caster angle at the front axle can only be changed by adjusting the camber. Remove stabilizer bar carefully as it is pre-loaded
3	Install repair bolt (19c, 19d) onto front (3) or rear (2) transverse control arm mounting	Only if the camber or caster cannot be adjusted. Screw on the nut (19b) of the repair bolt (19c, 19d) until it abuts, but do not tighten yet so that the elastomer bearing of the lower transverse control arm can twist when the vehicle is rocked to settle the suspension. On interior carriers with lock tabs on both sides of the front transverse control arm mounting, only the new repair bolt (19d) may be used. The new repair bolt (19) for the rear transverse control arm mounting (2) can be inserted from above or from below. The old repair bolt (19c) can be replaced with the new repair bolt (19d). Only use the new repair bolt (19d) with washers (19e).
4	Adjust camber	Camber at vehicle level	*BE40.20-P-1001-13AB
4	Adjust camber	Permissible difference in front axle camber between right and left side of vehicle	*BE40.20-P-1002-13AB
5	Checking caster		AR40.20-P-0322-03GQ
		Caster values, form	*BE40.20-P-1001-20G
		Permissible difference in caster between right and left side of vehicle	*BE40.20-P-1002-20G
		Absolute caster tolerance	*BE40.20-P-1003-20G
6	Tighten the nut (19b) of the repair bolt (19c, 19d)	The repair bolt (19c, 19d) must not turn after fixing. Counterhold the repair bolt (19b) when tightening the nut (19c, 19d). Otherwise the lock tabs in the front axle carrier may be damaged.
7	Tighten bolted connections (1) of transverse control arm mountings (2, 3)	Bolt of lower transverse control arm at front to front axle carrier	*BA33.20-P-1004-01R
		Nut, lower control arm at bottom rear to front axle carrier	*BA33.20-P-1005-01R
		Bolt, lower transverse control arm at outside rear to front axle carrier	*BA33.20-P-1007-01R
8	Fasten torsion bar to front axle carrier	Only when camber on front transverse control arm mounting (3) had to be corrected. Mount stabilizer bar carefully as it is pre-loaded
8	Fasten torsion bar to front axle carrier	Bolt, stabilizer bar bracket/stabilizer bar to front axle carrier	*BA32.20-P-1001-02Q

TEST AND ADJUSTMENT VALUES FOR FRONT AXLE CAMBER

Number	Designation			Model 166.0 except code 489/491/Z04/Z05	Model 166.0 with code 489, model 166.8
BE40.20-P-1001-13AB	Camber at vehicle level	+4.03°	∠°	-	-1° 45' (±30')
		+5.26°	∠°	-	-1° 24' (±30')
		+6.49°	∠°	-	-1° 5' (±30')
		+6.74°	∠°	-	-
		+7.84°	∠°	-0° 44' (±30')	-
		+7.97°	∠°	-	-
		+9.07°	∠°	-0° 27' (±30')	-
		+9.20°	∠°	-	-
		+10.30°	∠°	-0° 12' (±30')	-

TEST AND ADJUSTMENT VALUES FOR FRONT AXLE CAMBER

Number	Designation			Model 166.0 with code 491	Model 166.0 with code Z04/Z05
BE40.20-P-1001-13AB	Camber at vehicle level	+4.03°	∠°	-	-1° 45' (±30')
		+5.26°	∠°	-	-1° 24' (±30')
		+6.49°	∠°	-	-1° 5' (±30')
		+6.74°	∠°	-1° 1' (±30')	-
		+7.84°	∠°	-	-
		+7.97°	∠°	-0° 43' (±30')	-
		+9.07°	∠°	-	-
		+9.20°	∠°	-0° 26' (±30')	-
		+10.30°	∠°	-	-

TEST AND ADJUSTMENT VALUES FOR FRONT AXLE CAMBER

Number	Designation			Model 166 AMG
BE40.20-P-1001-13AB	Camber at vehicle level	+4.03°	∠°	-1° 45' (±30')
		+5.26°	∠°	-1° 24' (±30')
		+6.49°	∠°	-1° 5' (±30')
		+6.74°	∠°	-
		+7.84°	∠°	-
		+7.97°	∠°	-
		+9.07°	∠°	-
		+9.20°	∠°	-
		+10.30°	∠°	-

TEST AND ADJUSTMENT VALUES FOR CASTER

Number	Designation	MODEL 166
BE40.20-P-1001-20G	Caster values, form
BE40.20-P-1001-20G

TEST AND ADJUSTMENT VALUES FOR FRONT AXLE CAMBER

Number	Designation		Model 166.0 except code 489/491/Z04/Z05	Model 166.0 with code 489, model 166.8
BE40.20-P-1002-13AB	Permissible difference in front axle camber between right and left side of vehicle	∠°	±19'	±19'

TEST AND ADJUSTMENT VALUES FOR FRONT AXLE CAMBER

Number	Designation		Model 166.0 with code 491	Model 166.0 with code Z04/Z05
BE40.20-P-1002-13AB	Permissible difference in front axle camber between right and left side of vehicle	∠°	±19'	±19'

TEST AND ADJUSTMENT VALUES FOR FRONT AXLE CAMBER

Number	Designation		Model 166 AMG
BE40.20-P-1002-13AB	Permissible difference in front axle camber between right and left side of vehicle	∠°	±19'

TEST AND ADJUSTMENT VALUES FOR CASTER

Number	Designation		MODEL 166
BE40.20-P-1002-20G	Permissible difference in caster between right and left side of vehicle	∠°	±30'

TEST AND ADJUSTMENT VALUES FOR CASTER

Number	Designation		MODEL 166
BE40.20-P-1003-20G	Absolute caster tolerance	∠°	±30'

FRONT AXLE TORSION BAR

Number	Designation		MODEL 166 without CODE 468 (Active driving stability (stability))	MODEL 166 with CODE 468 (Active driving stability (stability))
BA32.20-P-1001-02Q	Bolt, stabilizer bar bracket/stabilizer bar to front axle carrier	Nm	100	130

WHEEL CONTROL, HUB

Number	Designation			MODEL 166
BA33.20-P-1004-01R	Bolt of lower transverse control arm at front to front axle carrier	Stage 1	Nm	120
BA33.20-P-1004-01R		Stage 2	∠°	90

WHEEL CONTROL, HUB

Number	Designation			MODEL 166
BA33.20-P-1005-01R	Nut, lower control arm at bottom rear to front axle carrier	Stage 1	Nm	65
BA33.20-P-1005-01R	Nut, lower control arm at bottom rear to front axle carrier	Stage 2	∠°	90

WHEEL CONTROL, HUB

Number	Designation			MODEL 166
BA33.20-P-1007-01R	Bolt, lower transverse control arm at outside rear to front axle carrier	Stage 1	Nm	130
BA33.20-P-1007-01R		Stage 2	∠°	45
