| 1 |
Circuit 15, status |
13G |
| 10 |
Transfer case, status |
14J |
| 10 |
Transfer case, status |
22G |
| 11 |
Vehicle level, status |
3F |
| 11 |
Vehicle level, status |
18H |
| 11 |
Vehicle level, status |
27J |
| 11 |
Vehicle level, status |
30H |
| 11 |
Vehicle level, status |
7G |
| 12 |
ESP®, status |
11G |
| 13 |
Diagnosis, communication |
14D |
| 13 |
Diagnosis, communication |
16D |
| 13 |
Diagnosis, communication |
13F |
| 13 |
Diagnosis, communication |
13G |
| 14 |
Vehicle level button, status |
13G |
| 14 |
Vehicle level button, status |
19B |
| 14 |
Vehicle level button, status |
13B |
| 16 |
Vehicle level rotary switch, status |
13C |
| 16 |
Vehicle level rotary switch, status |
14G |
| 16 |
Vehicle level rotary switch, status |
20B |
| 17 |
AIRMATIC central reservoir charge valve, actuation |
5J |
| 18 |
Wheel speed, signal |
11G |
| 18 |
Wheel speed, signal |
2H |
| 19 |
Off-Road package transmission mode controller, status |
13C |
| 19 |
Off-Road package transmission mode controller, status |
20B |
| 19 |
Off-Road package transmission mode controller, status |
14J |
| 19 |
Off-Road package transmission mode controller, status |
22F |
| 2 |
AIRMATIC fault, message |
8D |
| 2 |
AIRMATIC fault, message |
4D |
| 2 |
AIRMATIC fault, message |
13E |
| 20 |
Light-emitting diode actuation |
26C |
| 20 |
Light-emitting diode actuation |
16B |
| 20 |
Light-emitting diode actuation |
12C |
| 21 |
Battery voltage, signal |
14G |
| 22 |
Active roll stabilization control unit, status |
11G |
| 23 |
Level control, status |
7G |
| 24 |
Drivetrain operational, signal |
15J |
| 25 |
Engine running, signal |
15J |
| 26 |
Body acceleration sensor, signal |
13H |
| 3 |
Transmission control, status |
13J |
| 3 |
Transmission control, status |
23H |
| 4 |
Level sensor, status |
13J |
| 5 |
Damping valve units, actuation |
8K |
| 6 |
AIRMATIC pressure sensor, signal |
11H |
| 7 |
Level control valve, actuation |
7J |
| 8 |
AIRMATIC pressure reduction valve, actuation |
14K |
| 9 |
AIRMATIC compressor, actuation |
11K |
| 9 |
AIRMATIC compressor, actuation |
12K |
| A1 |
Instrument cluster |
6D |
| A1p13 |
Multifunction display |
3D |
| A9/1 |
AIRMATIC compressor |
13K |
| A9/1y1 |
AIRMATIC pressure reduction valve |
14K |
| B22/10 |
Right rear level sensor |
16L |
| B22/7 |
Left rear level sensor |
16K |
| B22/8 |
Left front level sensor |
16K |
| B22/9 |
Right front level sensor |
16K |
| B24/3 |
Left front body lateral acceleration sensor |
16F |
| B24/4 |
Right front body lateral acceleration sensor |
16G |
| B24/6 |
Right rear body lateral acceleration sensor |
16G |
| CAN B |
Interior CAN |
14B |
| CAN C |
Drive train CAN |
25J |
| CAN C |
Drive train CAN |
25H |
| CAN D |
Diagnostic CAN |
15E |
| CAN E1 |
Chassis CAN 1 |
12F |
| CAN E1 |
Chassis CAN 1 |
9F |
| CAN E1 |
Chassis CAN 1 |
16H |
| CAN E1 |
Chassis CAN 1 |
9H |
| CAN E1 |
Chassis CAN 1 |
14A |
| CAN E1 |
Chassis CAN 1 |
26A |
| CAN E1 |
Chassis CAN 1 |
25G |
| CAN E2 |
Chassis CAN 2 |
9D |
| Code 468 |
ACTIVE CURVE SYSTEM |
4G |
| F58kT |
AIRMATIC relay |
11K |
| L6/1 |
Left front axle RPM sensor |
1J |
| L6/2 |
Right front axle RPM sensor |
1K |
| L6/3 |
Left rear axle RPM sensor |
1K |
| L6/4 |
Right rear axle RPM sensor |
1K |
| LIN B12 |
Center console switch LIN |
22B |
| N10 |
SAM control unit |
18B |
| N15/7 |
Transfer case control unit |
29K |
| N3/10 |
ME-SFI [ME] control unit |
21J |
| N3/9 |
CDI control unit |
20F |
| N30/4 |
Electronic Stability Program control unit |
2E |
| N51/3 |

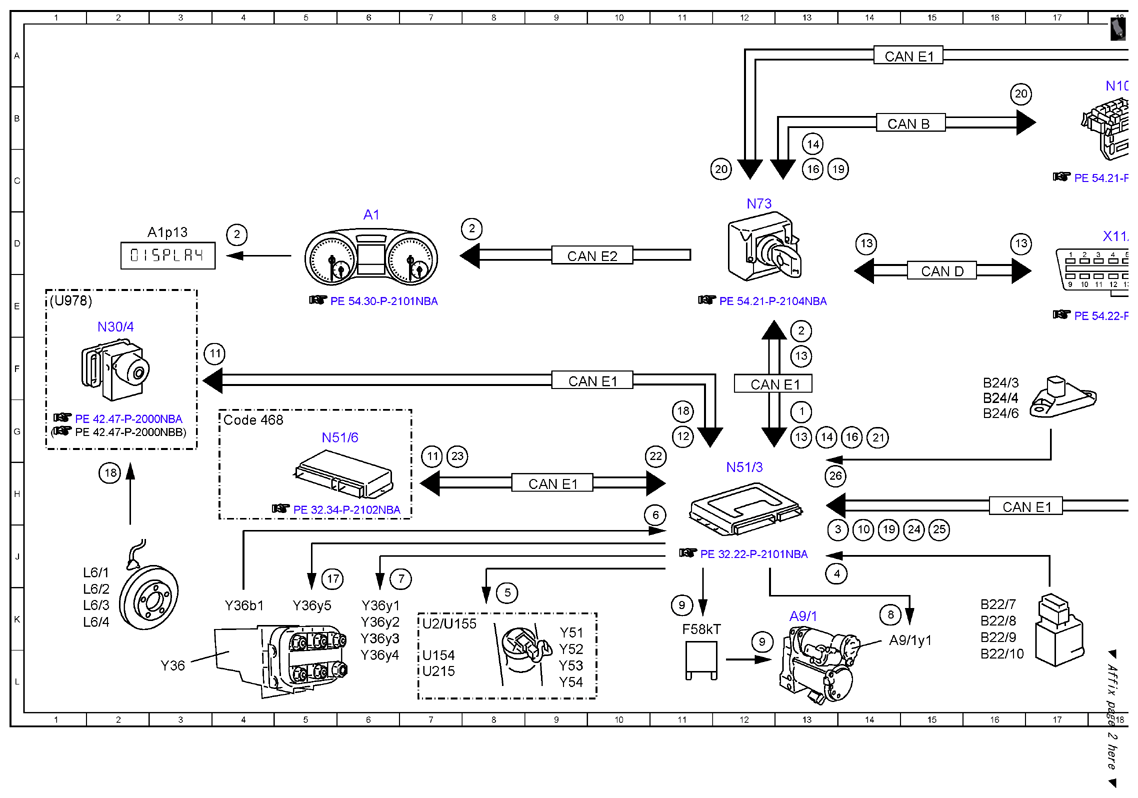

AIRMATIC control unit |
12H |
| N51/6 |
Active roll stabilization control unit |
5G |
| N72 |

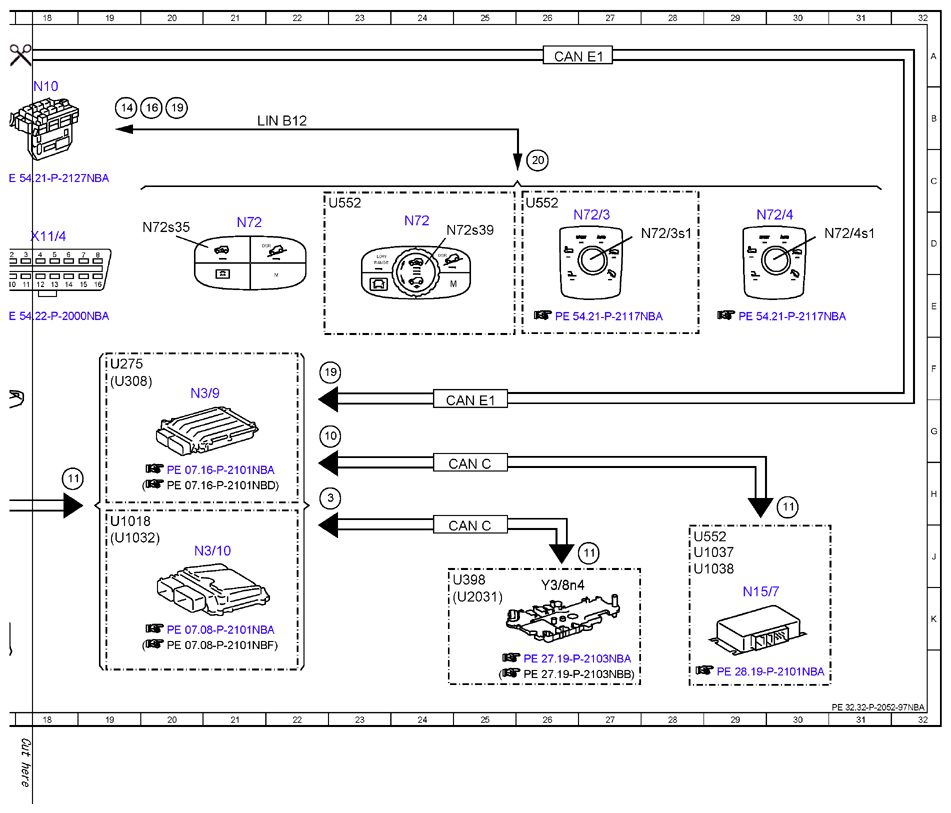

Lower control panel control unit |
21D |
| N72 |
Lower control panel control unit |
24D |
| N72/3 |
Off-Road operating panel control unit |
27D |
| N72/3s1 |
Off-Road package transmission mode controller |
28D |
| N72/4 |
Transmission modes control panel |
29D |
| N72/4s1 |
Transmission mode control |
31D |
| N72s35 |
Vehicle level button |
20D |
| N72s39 |
Vehicle level rotary switch |
25D |
| N73 |
Electronic ignition switch control unit |
12C |
| U1018 |
Valid for gasoline engine 276 |
19J |
| U1032 |
Valid for engine 278 and 157 |
19J |
| U1037 |
Valid for vehicle model designation 166.0 |
28J |
| U1038 |
Valid for vehicle model designation 166.8 |
28J |
| U154 |
Valid for 166.0 |
7L |
| U155 |
Valid for 166.8 |
|
| U2031 |
Valid for transmission 724 |
24K |
| U215 |
Valid for model series 292 |
7L |
| U275 |
Valid for engine 642.8 |
19F |
| U308 |
Valid for diesel engine 651.9 |
19F |
| U398 |
Valid for transmission 725 (NAG3) |
24J |
| U552 |
Valid for on-road/off-road package |
28J |
| U552 |
Valid for on-road/off-road package |
22C |
| U552 |
Valid for on-road/off-road package |
26C |
| U978 |
Valid for hybrid drive |
1E |
| X11/4 |
Diagnostic connector |
18D |
| Y3/8n4 |
Fully integrated transmission control unit |
26K |
| Y36 |
AIRMATIC valve unit |
3L |
| Y36b1 |
AIRMATIC pressure sensor |
4K |
| Y36y1 |
Left front level control valve |
6K |
| Y36y2 |
Right front level control valve |
6K |
| Y36y3 |
Left rear level control valve |
6K |
| Y36y4 |
Right rear level valve |
6L |
| Y36y5 |
AIRMATIC central reservoir charge valve |
5K |
| Y51 |
Left front axle damping valve unit |
9K |
| Y52 |
Right front axle damping valve unit |
9L |
| Y53 |
Left rear axle damping valve unit |
9L |
| Y54 |
Right rear axle damping valve unit |
9L |
