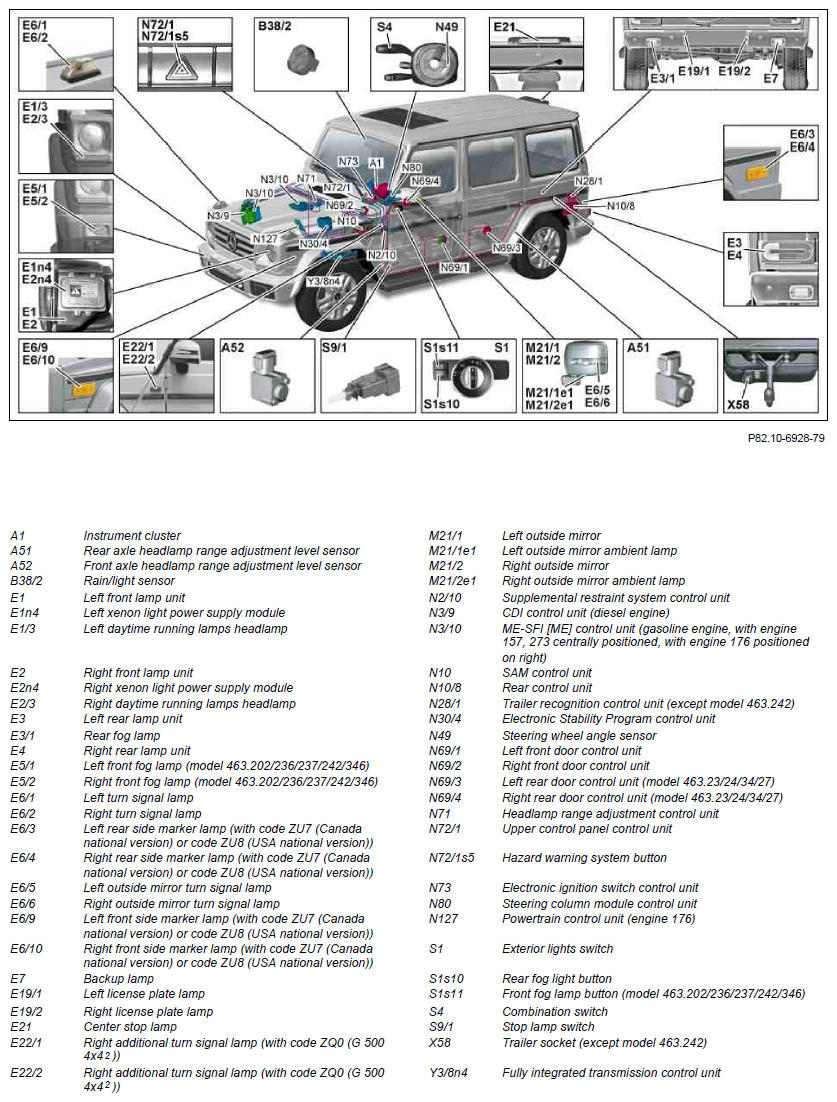

Overview of exterior lights system components - GF82.10-P-9998GW
MODEL 463 as of model year 2013
Shown: model 463.23

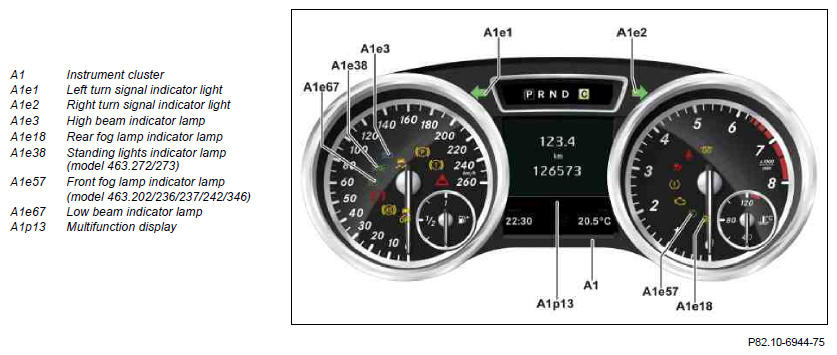

Display in instrument cluster
The following components in the instrument cluster transmitting functional feedback are not shown here:
- Warning buzzer (A1h1)
- Function check of turn signal lights, acoustic (A1h2)

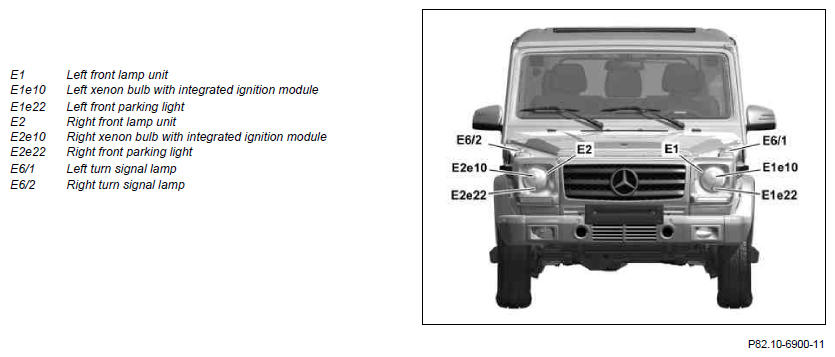

Front lamp unit, shown on model 463.23
The following components integrated into the front lamp unit are not shown:
- Left high beam solenoid (E1l1)
- Left headlamp range adjustment actuator motor (E1m1)
- Right high beam solenoid (E2l1)
- Right headlamp range adjustment actuator motor (E2m1)

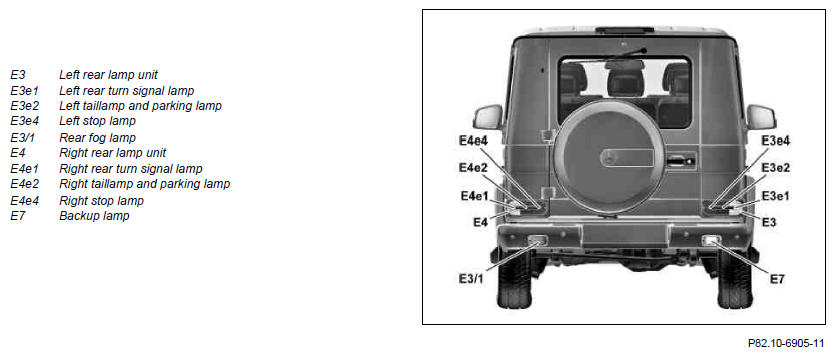

Rear lamp unit, shown on model 463.23
| Component description for instrument cluster | A1 | GF54.30-P-6000GW | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GW | |
| Component description for CDI control unit | Model 463 with engine 642.8 as of model year 2013 N3/9 |
GF07.16-P-6000OGT | |
| Component description for ME-SFI (ME) control unit | Model 463 with engine 157.9 as of model year 2013 N3/10 |
GF07.61-P-6000MMJ | |
| Model 463 with engine 176.9 as of model year 2016 N3/10 |
GF07.61-P-6000MNF | ||
| Model 463 with engine 273.9 as of model year 2013 N3/10 |
GF07.61-P-6000MLJ | ||
| SAM control unit, component description | N10 | GF54.21-P-4157GW | |
| Rear control unit, component description | N10/8 | GF54.21-P-4134GW | |
| Component description for trailer recognition control unit | Model 463 (except 463.242) as of model year 2013 N28/1 |
GF31.19-P-4050GW | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119GW | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GW | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GW | |
| Component description for rear door control unit | Model 463.23/24/27/34 as of model year 2013 N69/3, N69/4 |
GF72.29-P-6021GW | |
| Component description of headlamp range adjustment control unit | N71 | GF82.10-P-2112GW | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040GW | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GW | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GW | |
| Drivetrain control unit, component description | Model 463 with engine 176.9 as of model year 2016 N127 |
GF54.21-P-2141MNF | |
| Component description for fully integrated transmission control unit | Model 463 with transmission 722.9 as of model year 2013 Y38n4 |
GF27.60-P-5165AHG | |
| Table of contents for function description of exterior lights | GF82.10-P-0999GW |
