Remove/install center console - AR68.20-P-2000GW
MODEL 463/facelift 2012
MODIFICATION NOTES
| 26.09.2014 | Repair method adjusted | Operation steps 1 to 23 |
| Remove/install | |||
| 1 | Move front seats to front-most position | ||
| 2 | Unscrew bolts (10) on right and left | ||
| 3 | Move front seats to center position | ||
| 4 | Disconnect ground line from battery | AR54.10-P-0003GW | |
| Notes on battery | AH54.10-P-0001-01A | ||
| 5 | Remove center dashboard cover | AR68.10-P-3430GW | |

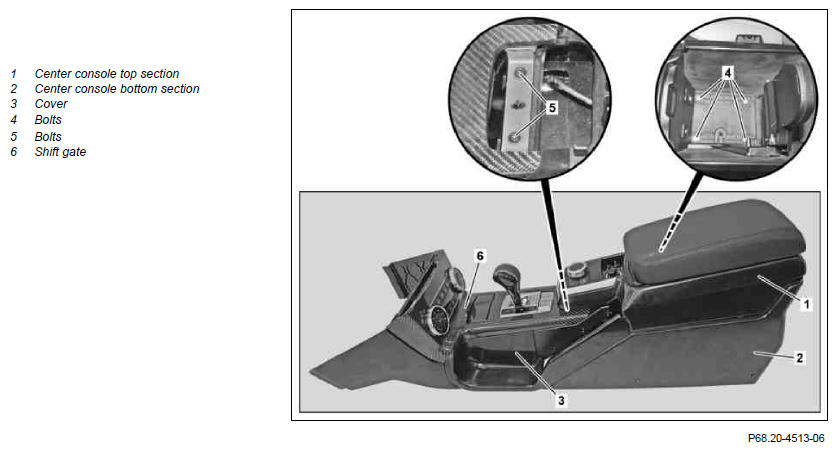

| 6 | Remove cover in stowage compartment on armrest and unscrew bolts (4) | ||
| 7 | Unclip center console top section (1) upward and lay down to side | ||
| 8 | Disconnect electrical connectors from center console | ||
| 9 | Disconnect electrical line from 12 V socket on center console top section (1) | ||

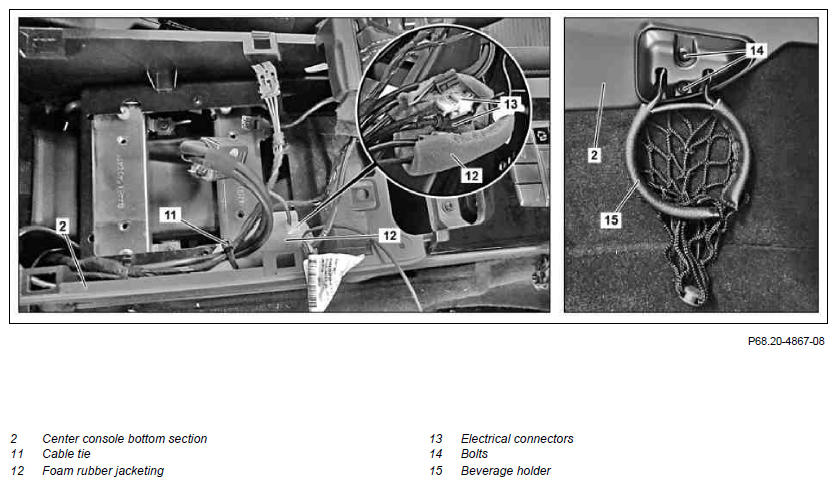

| 10 | Remove cable ties (11) | ||
| 11 | Open foam jacketing (12) on electrical lines | Foam jacketing (12) cannot be removed without damage. |
|
| 12 | Disconnect electrical connectors (13) from foam jacketing (12) | ||
| 13 | Unscrew bolts (5) and unclip shift gate (6) upward at an angle | Figure | |
| 14 | Disconnect electrical connectors from shift gate (6) | ||
| 15 | Unclip cover (3) from parking brake lever | AR68.20-P-2311-01GW | |
| Figure | |||

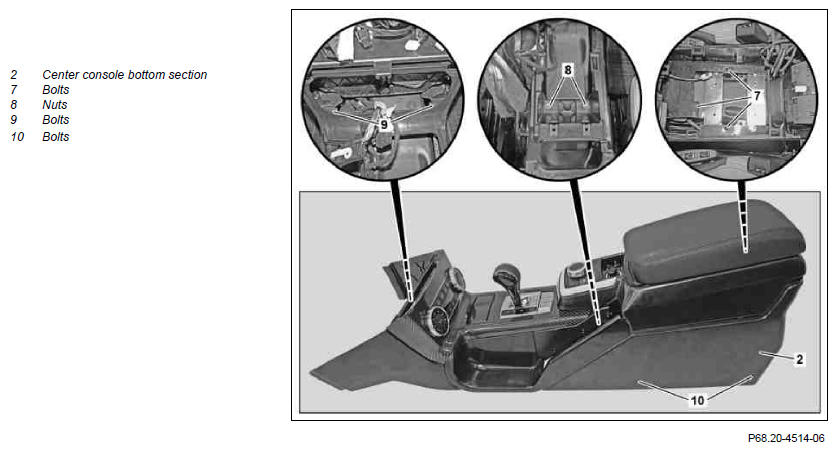

| 16 | Remove screw/bolts (7) | ||
| 17 | Remove nuts (8) | ||
| 18 | Remove screw/bolts (9) | ||
| 19 | Unscrew bolts (14) and remove beverage holder (15) in passenger footwell | ||
| 20 | Lift center console bottom section (2) until electrical connector on 12-V socket is accessible | ||
| 21 | Disconnect electrical connector from 12-V socket on center console bottom section (2) | ||
| 22 | Remove center console bottom section (2) | ||
| 23 | Install in the reverse order |
