Remove/install brake shoes of parking brake - AR42.20-P-0530B

MODEL 461 with disk brakes at the rear axle

MODEL 463 (except 463.270/271) up to model year 2013 with disk brakes at the rear axle

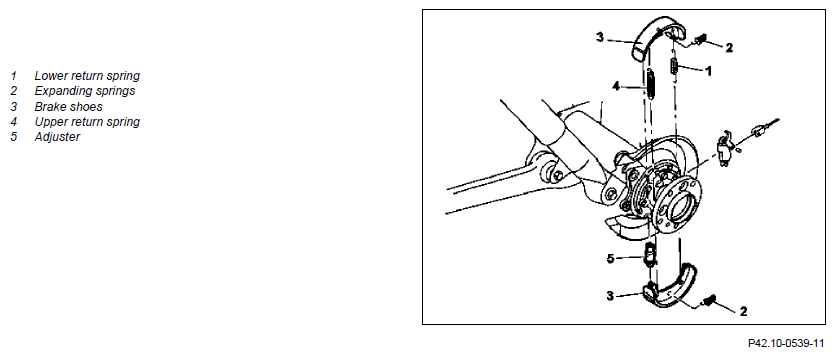

Fig 1: Parking Brake Shoes Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove brake disk	Model 461 with disk brakes at the rear axle Model 463 (except 463.234/270/271) up to model year 2013 except code 979 (Special protection MB Guard) with disk brakes at the rear axle	AR42.10-P-0240GG
2	Unhook lower return spring (1)	Ensure that the lower return spring engages securely (1).
		Removal and installation tool	Figure
3	Remove expanding springs (2)	Installation tool	Fig 2
4	Remove brake shoes (3) together with the upper return spring (4) and remove brake adjuster (5)
5	Install in the reverse order
6	Check adjustment of parking brake, adjust if necessary		AR42.20-P-0540GI

Fig 2: Identifying Installation Tool (112 589 09 61 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Removal And Installation Tool (116 589 01 62 00)

Courtesy of MERCEDES-BENZ USA
