Remove/install brake hose at rear axle - AR42.10-P-0023GW

MODEL 463 as of model year 2013

Shown on MODEL 463 as of model year 2013

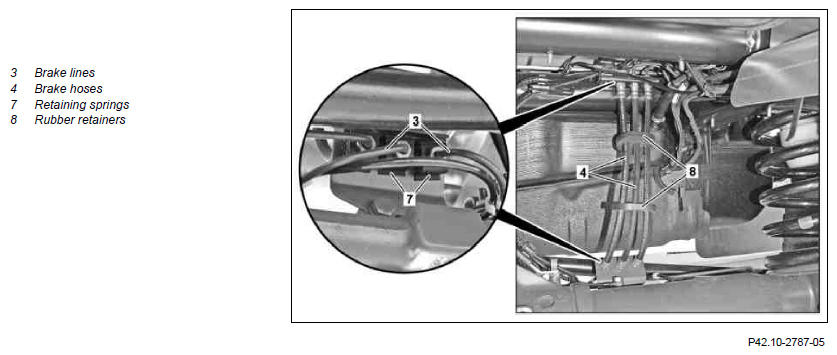

Fig 1: Brake Hose At Rear Axle Remove/Install Components - Shown On Model 463 As Of Model Year 2013 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

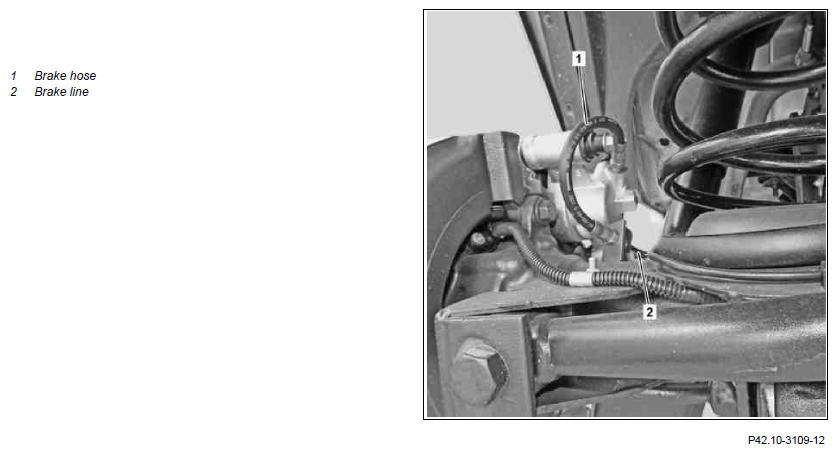

Fig 2: Brake Hose At Rear Axle Remove/Install Components - Shown On Model 463 As Of Model Year 2013 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 463 as of model year 2016

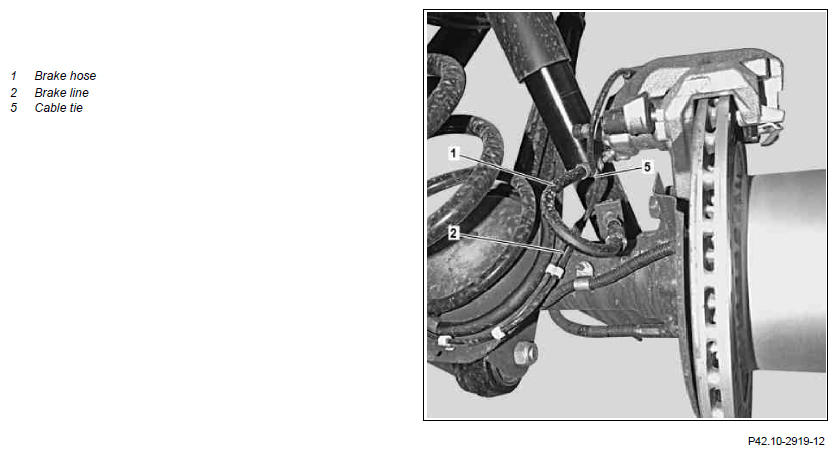

Fig 3: Brake Hose At Rear Axle Remove/Install Components - Shown On Model 463 As Of Model Year 2016

Courtesy of MERCEDES-BENZ USA

	Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Risk of accident when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work.	Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system.	AS42.50-Z-0002-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Remove/install
1	Lift/jack up vehicle		AR00.60-P-1000G
	Clean
2	Clean area surrounding connecting points to be opened on the brake system	Before opening the brake system the area around the separation point should be cleaned thoroughly. Even the smallest particles of dirt, introduced into the hydraulic components, can lead to malfunctions and a total failure of the brake system. Only use clean, lint free rags and cleaner free of mineral oil. Do not use any compressed- air for cleaning when the brake system is open.
	Perform operation steps 3 to 6 only for removal of brake hoses (1) from brake calipers
3	Detach rear complete wheels
			AP40.10-P-4050G
4	Detach brake line (2) from brake hose (1)	It must be ensured that the components are installed so that they do not chafe against other components and that they are not subject to torsion.
		Brake line to brake hose	*BA42.10-P-1001-04B
		Box wrench bit	Figure
		Torque wrench	Figure
5	Collect any escaping brake fluid using a suitable container
6	Seal exposed connections with plugs	Record plug	Figure
7	Detach cable tie (5) from brake hose (1)	Model 463 as of model year 2013 up to model year 2016 Replace cable tie (5).
8	Detach brake hose (1) from brake caliper	It must be ensured that the components are installed so that they do not chafe against other components and that they are not subject to torsion.
		Brake hose to rear axle floating caliper	*BA42.10-P-1005-04B
		Box wrench bit	Figure
		Torque wrench	Figure
9	Collect any escaping brake fluid using a suitable container
10	Seal exposed connections with plugs	Record plug	Figure
	Perform operation steps 7 to 8 only for removal of brake hoses (4) from vehicle body at rear axle
11	Detach upper and lower brake lines (3) from brake hoses (4)	It must be ensured that the components are installed so that they do not chafe against other components and that they are not subject to torsion. It must be ensured that the retaining springs (7) are seated correctly.
		Brake line to brake hose	*BA42.10-P-1001-04B
		Box wrench bit	Figure
		Torque wrench	Figure
12	Collect any escaping brake fluid using a suitable container
13	Seal exposed connections with plugs	Record plug	Figure
14	Pull brake hoses (4) out of rubber retainers (8)
15	Install in the reverse order
16	Bleed brake system		AR42.10-P-0010GW
