Remove/install washer fluid reservoir of windshield washer system - AR82.35-P-6000GW

MODEL 463 as of model year 2013/model refinement package 2012

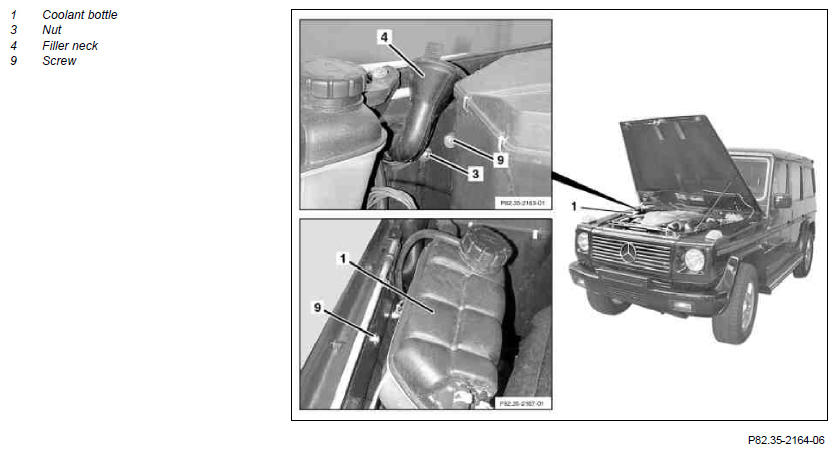

Fig 1: Washer Fluid Reservoir Of Windshield Washer System Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

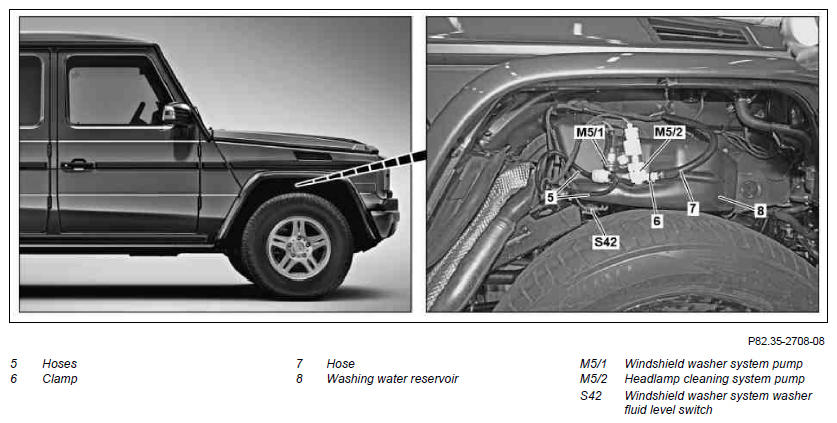

Fig 2: Washer Fluid Reservoir Of Windshield Washer System Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Detach right front wheel		AP40.10-P-4050G
2	Remove right wheel housing paneling
3	Unscrew nut (3) from filler neck (4)
4	Pull filler neck (4) out of washer fluid reservoir (8)	When installing the filler neck (4) ensure that the sealing ring is correctly seated on the windshield washer fluid reservoir (8).
5	Remove bolts (9) of washer fluid reservoir (8)	There are 3 screws/bolts (9) in all
6	Disconnect electrical connectors	Electrical connection of: Windshield washer system pump (M5/1), headlamp cleaning system pump (M5/2) and switch for washer fluid level on windshield washer system (S42).
7	Lift washer fluid reservoir (8) out of wheel well and drain washer fluid	Pour washer fluid into a suitable vessel. Do not pour in washer fluid until all work is complete.
8	Mark hoses (5) and window washer fluid pump (M5/1)
9	Detach hoses (5) from window washer fluid pump (M5/1)
10	Remove hose (7) from headlamp cleaning system pump (M5/2)	For this purpose, remove clip (6) and pull out hose.
11	Install in the reverse order
12	Pour in washer fluid	See Operator's Manual.
13	Perform function test of windshield washer system
