Remove/install taillamp - AR82.10-P-4905GW

MODEL 463 as of model year 2013/model refinement package 2012

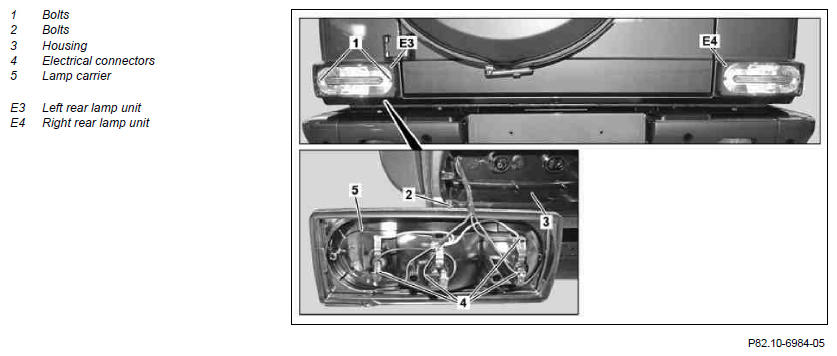

Fig 1: Taillamp Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Unscrew screws/bolts (1) and remove lens from left rear lamp unit (E3) or right rear lamp unit (E4)	Inspect gasket, install new part if necessary.
2	Remove the lamp carrier (5)
3	Mark electrical connectors (4)
4	Disconnect electrical connectors (4)	Insulate electrical connectors (4) against unintentional contact. Otherwise this can lead to a short circuit.
5	Remove lamp carrier (5)
6	Remove bolts (2)	4 screws/bolts (2) available for each side.
7	Remove housing (3)
8	Install in the reverse order
