Remove/install loudspeakers in rear doors - AR82.62-P-7874GW

MODEL 463 (except 463.202) as of model year 2013/model refinement package 2012

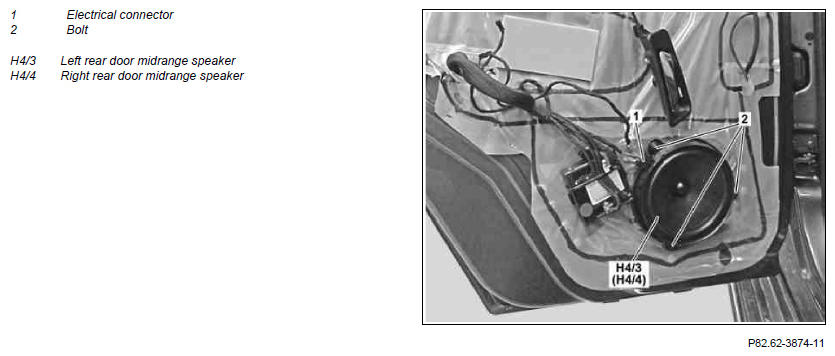

Fig 1: Rear Doors Loudspeakers Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove rear door lining		AR72.12-P-1010GW
2	Disconnect electrical connector (1)
3	Remove bolts (2)
4	Remove left rear door midrange speaker (H4/3) and right rear door midrange speaker (H4/4)	Observe installation position.
5	Install in the reverse order
6	Perform function test
