Remove/install bulbs of headlamp unit - AR82.10-P-1201GW
MODEL 463 (except 463.202) as of model year 2013/model refinement package 2012
| Remove/install | |||
| Risk of death caused by high voltage at xenon headlamps. Risk of explosion/risk of fire caused by highly flammable materials in the vicinity of damaged xenon bulbs. Risk of injury caused by UV light, hot components at xenon headlamps and glass splinters produced by bursting xenon bulbs. Risk of poisoning caused by inhalation of mercury vapors and by toxic salts and mercury compounds being ingested or coming into contact with skin | Do not come into contact with parts that are under high voltage. Persons with active electronic implants (e.g. heart pacemakers) must never work on xenon headlamps. Switch off entire lighting system. Wear insulated safety shoes, safety glasses and protective gloves. Remove highly inflammable materials from the hazard area. Ensure sufficient ventilation in the working area. | AS82.10-Z-0001-01A | |
| 1 | Remove left front lamp unit or right front lamp unit | AR82.10-P-4730GW | |
| 2 | Remove housing cover | ||

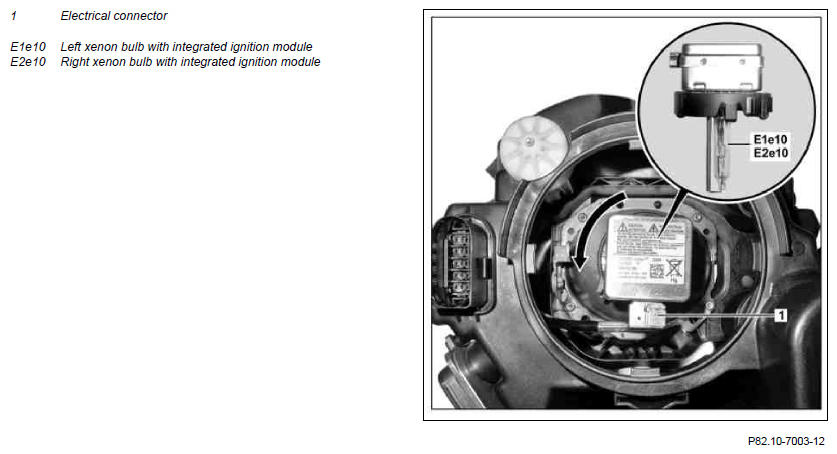

| 3 | Disconnect electrical connector (1) | ||
| 4 | Turn left xenon bulb with integrated ignition module (E1e10) or right xenon bulb with integrated ignition module (E2e10) to the left and remove. | ||
| 5 | Install in the reverse order |
