Remove/install apron lighting - AR82.25-P-4729GW

MODEL 463 as of model year 2013/facelift 2012

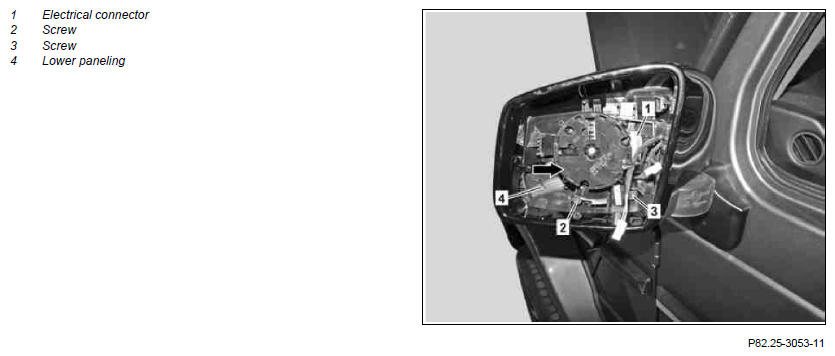

Fig 1: Apron Lighting Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

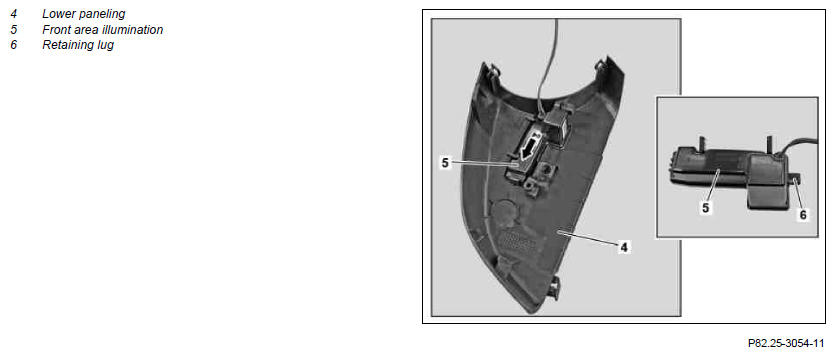

Fig 2: Apron Lighting Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove mirror glass		AR88.70-P-9020GW
2	Expose electrical connector (1) and disconnect
3	Remove screws/bolts (2, 3)
4	Unclip lower cover (4)	To do so, move clips in direction of arrow.
5	Unclip front area illumination (5) and remove	Remove front area illumination (5) in direction of arrow. Otherwise the retaining lug (6) may be damaged.
6	Install in the reverse order
