Remove and install wiper arm - AR82.30-P-6100A

MODEL 461, 463

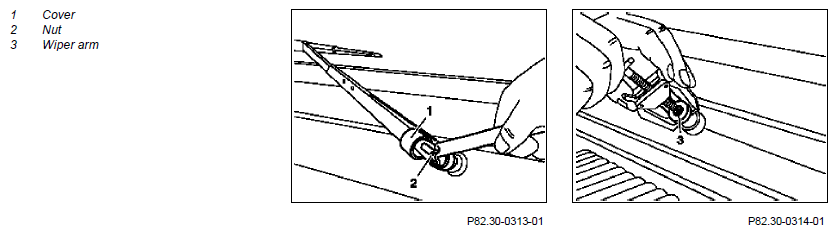

Fig 1: Wiper Arm Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury caused by moving parts that can pinch, crush or, in extreme cases even sever extremities.	Always remove ignition key when working on windshield wiper mechanism.	AS82.30-Z-0001-01A
1	Withdraw ignition key
2	Fold open cover (1)
3	Unscrew nut (2)		*BA82.30-P-1003-01B
4	Detach wiper arm (3)	Wiper arm (3) is connected with axle of wiper bearing via a fine toothed taper. Adjust the wiper blade horizontally on the bottom edge of the windshield.
			Fig 2
5	Install in the reverse order

WINDSHIELD WIPER

Number	Designation		Model 461, 463
BA82.30-P-1003-01B	Nut on wiper arm	Nm	16
