Remove and install bracket for cell phone - AR82.70-P-8918GW

MODEL 463 as of model year 2013/model refinement package 2012

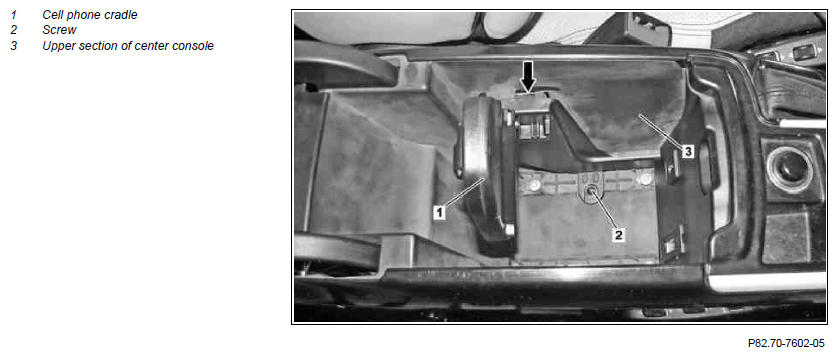

Fig 1: Cell Phone Bracket Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Fold up armrest of center console
2	Remove bolt (2)
3	Unclip cell phone holder (1) from upper section of center console (3) (arrow)	Carefully unclip cell phone holder (1). This will prevent damage to the cell phone holder (1) and the upper section of the center console (3).
4	Remove upper section of center console (3)	Place upper section of center console (3) with connected lines to one side	AR68.20-P-2000GW
5	Disconnect electrical connections from cell phone holder (1)
6	Pull cell phone holder (1) out of upper section of center console (3) towards the rear
7	Install in the reverse order
8	Read out and erase the fault memory using Star Diagnosis		AD00.00-P-2000-04A
