Remove/install door sill - AR68.30-P-4100GW

MODEL 463 as of model year 2013 model refinement package 2012

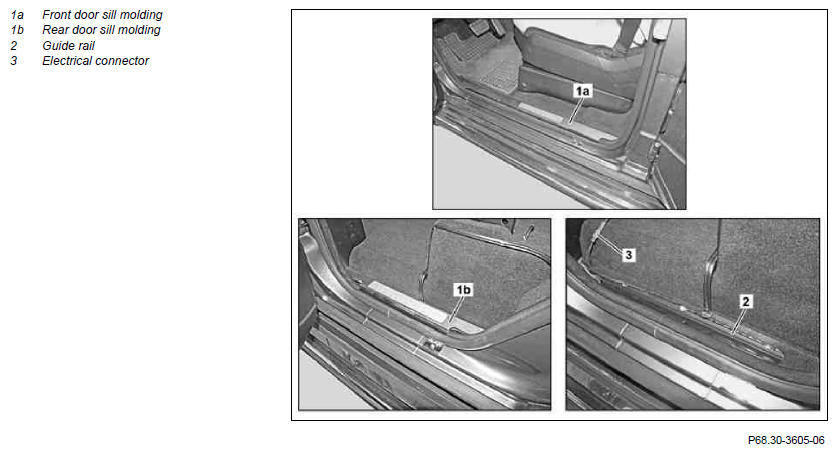

Fig 1: Door Sill Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1.1	Lift door sills (1a, 1b) upward and unclip from guide rail (2)	Vehicles without illuminated door sill molding
1.1			Fig 2
1.2	Lift left front illuminated door sill molding (E17/47), right front illuminated door sill molding (E17/48), left rear illuminated door sill molding (E17/51) and right rear illuminated door sill molding (E17/52) upward and unclip from guide rail (2)	Vehicles with illuminated door sill molding Ensure correct routing of lines.
1.2			Fig 2
2	Disconnect electrical connector (3)	Vehicles with illuminated door sill molding
3	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
