Retrofitting ultrasonic backup aid - AN54.65-P-0010A

MODEL 463 up to 1.9.96 Station wagon

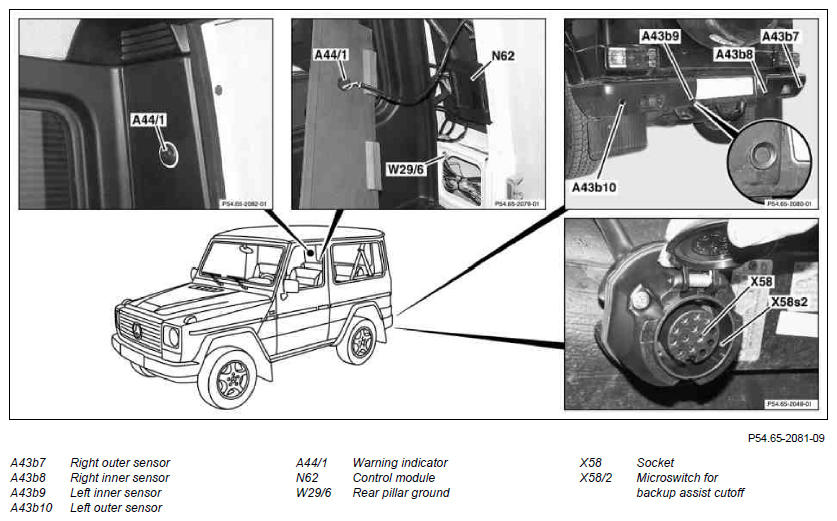

Fig 1: Warning Indicator, Socket, Control Module, Rear Pillar Ground, Microswitch For Backup Assist Cutoff And Sensors

Courtesy of MERCEDES-BENZ USA

	Removal
1	Disconnect ground cable from battery
			AR54.10-P-0003G
2	Remove bumper corners
			AR88.20-P-0010G
3	Remove license plate illumination	Housing is clipped into bumper
4	Remove right-hand turn signal lamp
5	Remove trailer socket	Only if code E43 fitted
6	Remove right rear pillar paneling
	Install
	Use tools required for installation	Keyhole saw made of HSS-BI metal Ø 32 mm	*WH58.30-Z-1001-34A
		Keyhole saw holder Ø 32 - 152 mm	*WH58.30-Z-1002-34A
		Center bit Ø 16 - 30.5 mm	*WH58.30-Z-1003-34A
		Drill (electric/pneumatic)	*WE58.40-Z-1001-03A
		Body saw (electric/pneumatic)	*WE58.40-Z-1004-03A
		Wet/dry vacuum cleaner	*WE58.40-Z-1005-03A
7	Install warning indicator (A44/1) into rear pillar	Drill rear pillar paneling and isntall warning indicator with adhesive plate	AN54.65-P-0010-01A
8	Fit sensors into bumper		AN54.65-P-0010-03A
9	Install bumper corners
			AR88.20-P-0010G
10	Connect sensor wiring harness and route into vehicle	Drill cable opening 25 mm in turn signal light housing	AN54.65-P-0010-02A
11	Preassemble wiring harness of backup assist cutoff	Only if code E43 fitted Shop-make wiring harness	AN54.65-P-0010-06A
12	Install trailer socket with microswitch (X58s2)	Only if code E43 fitted	AN54.65-P-0010-05A
13	Install control module (N62) in rear pillar and connect		AN54.65-P-0010-04A
14	Connect ground cable to battery
			AR54.10-P-0003G
15	Carry out function check
16	Install rear pillar paneling
17	Install right turn signal lamp
18	Install license plate lighting

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1001-34A	HSS bimetal keyhole saw, dia. 32 mm (without mounting shaft and without drill bits)
WH58.30-Z-1002-34A	Keyhole saw holder dia. 32-152 mm
WH58.30-Z-1003-34A	Step drill bit dia. 16-30.5 mm

WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A	Drill (electric/pneumatic)
WE58.40-Z-1004-03A	Body saw (electric/pneumatic)
WE58.40-Z-1005-03A	Wet/dry vacuum cleaner

PARTS ORDERING NOTES

Part no.	Designation	Quantity
Group 82	Parts see Parktronic system	1
