Retighten Wheel Bolts Or Nuts - AP40.10-P-4070G

Model 460, 461

Model 463

up to model year 2019

Shown on steel disk wheel

G13658081Courtesy of MERCEDES-BENZ USA
  Information on tires/rims   AH40.10-P-9411-01A
  Retightening
1 Retighten wheel bolts or wheel nuts. NOTES

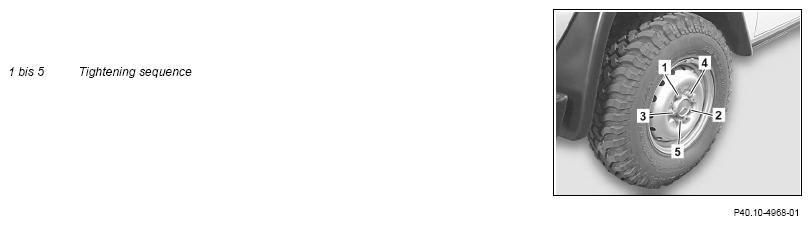

Observe the tightening sequence (1 to 5) and tightening torque.
Otherwise, the complete wheel may be damaged or work its way loose from the vehicle.
    TORQUE SPECIFICATION Wheel bolt for steel rim *BA40.10-P-1001-03A
    TORQUE SPECIFICATION Wheel bolt for light alloy wheel *BA40.10-P-1002-03A
    TORQUE SPECIFICATION Wheel nut for steel rim *BA40.10-P-1003-03A
    TORQUE SPECIFICATION Wheel nut, light alloy wheel *BA40.10-P-1004-03A
    TORQUE SPECIFICATION Wheel nut, two-piece light alloy wheel *BA40.10-P-1005-03A
    TORQUE SPECIFICATION Wheel bolt to steel rim *BA40.10-P-1001-01D
    TORQUE SPECIFICATION Wheel bolt to light alloy rim *BA40.10-P-1002-01D
    TORQUE SPECIFICATION Wheel nut, spare wheel to spare wheel carrier *BA40.00-P-1001-01A
SPARE WHEEL

Number Designation Model 460 Model 461
BA40.00-P-1001-01A Wheel nut, spare wheel to spare wheel carrier Nm 45 45
SPARE WHEEL

Number Designation Model 463 up to model year 2019 Model 463 as of model year 2019
BA40.00-P-1001-01A Wheel nut, spare wheel to spare wheel carrier Nm 45 20
WHEELS

Number Designation Model 460, 461 Model 463 up to model year 2019 Model 463 as of model year 2019
BA40.10-P-1001-01D Wheel bolt to steel rim Nm 180 150
DISK WHEELS

Number Designation Model 460 Model 461 (except 461.339) Model 461.339 except code ZD4 (Vehicle for non-civilian operations)
BA40.10-P-1001-03A Wheel bolt for steel rim Nm 180 180
DISK WHEELS

Number Designation Model 461.339 with code ZD4 (Vehicle for non-civilian operations) Model 463 up to model year 2019
BA40.10-P-1001-03A Wheel bolt for steel rim Nm - 180
WHEELS

Number Designation Model 460, 461 Model 463 up to model year 2019 Model 463 as of model year 2019
BA40.10-P-1002-01D Wheel bolt to light alloy rim Nm 130 150
DISK WHEELS

Number Designation Model 460 Model 461 (except 461.339) Model 461.339 except code ZD4 (Vehicle for non-civilian operations)
BA40.10-P-1002-03A Wheel bolt for light alloy wheel Nm 130 130
DISK WHEELS

Number Designation Model 461.339 with code ZD4 (Vehicle for non-civilian operations) Model 463 up to model year 2019
BA40.10-P-1002-03A Wheel bolt for light alloy wheel Nm - 130
DISK WHEELS

Number Designation Model 460 Model 461 (except 461.339) Model 461.339 except code ZD4 (Vehicle for non-civilian operations)
BA40.10-P-1003-03A Wheel nut for steel rim Nm 180 180
DISK WHEELS

Number Designation Model 461.339 with code ZD4 (Vehicle for non-civilian operations) Model 463 up to model year 2019
BA40.10-P-1003-03A Wheel nut for steel rim Nm - 180
DISK WHEELS

Number Designation Model 460 Model 461 (except 461.339) Model 461.339 except code ZD4 (Vehicle for non-civilian operations)
BA40.10-P-1004-03A Wheel nut, light alloy wheel Nm 140 140
DISK WHEELS

Number Designation Model 461.339 with code ZD4 (Vehicle for non-civilian operations) Model 463 up to model year 2019
BA40.10-P-1004-03A Wheel nut, light alloy wheel Nm - 140
DISK WHEELS

Number Designation Model 460 Model 461 (except 461.339) Model 461.339 except code ZD4 (Vehicle for non-civilian operations)
BA40.10-P-1005-03A Wheel nut, two-piece light alloy wheel Nm 175 175
DISK WHEELS

Number Designation Model 461.339 with code ZD4 (Vehicle for non-civilian operations) Model 463 up to model year 2019
BA40.10-P-1005-03A Wheel nut, two-piece light alloy wheel Nm 150 175
