Check Condition Of Suspension Struts Or Shock Absorbers And Springs - AP32.25-P-3255F
Model 463 up to model year 2019

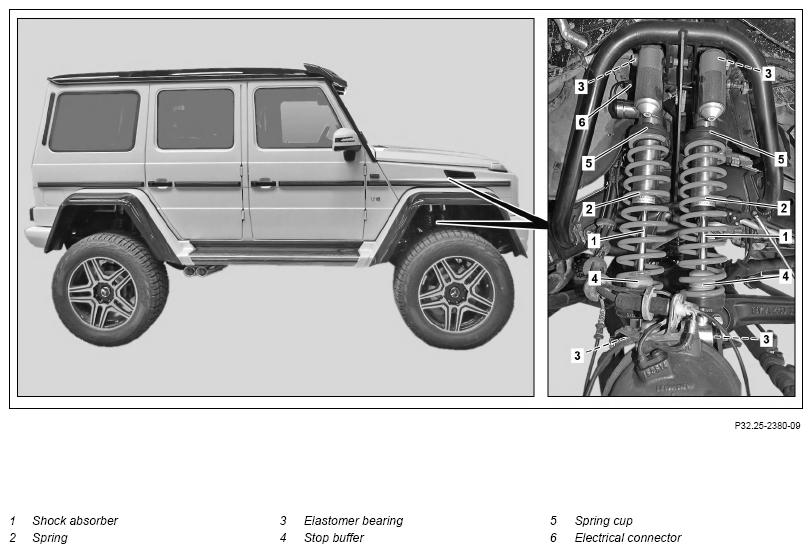

Shown on front suspension strut in model 463.234 with code ZQ0 (G 500 4x4 2 )

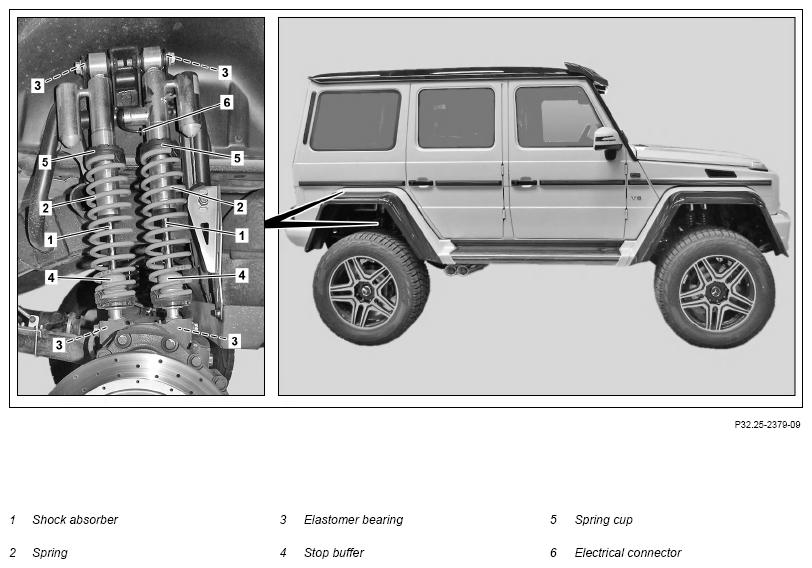

Shown on rear suspension strut in model 463.234 with code ZQ0 (G 500 4x4 2 )

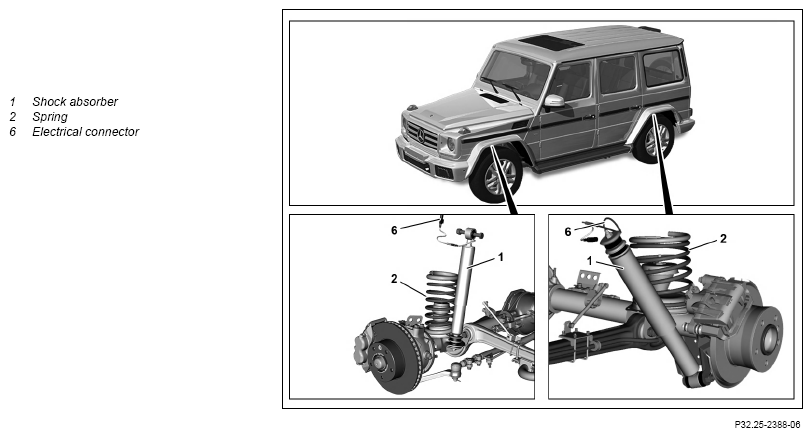

Shown on model 463.234 with code A20 (Adjustable damping) without code ZQ0 (G 500 4x4 2 )

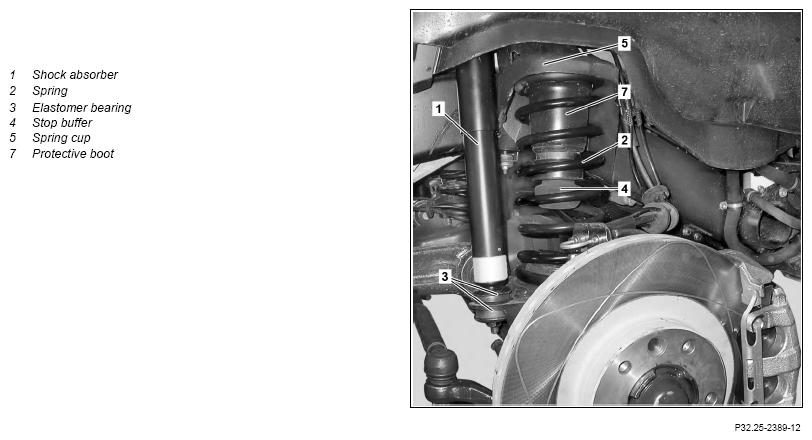

Shown on model 463.348
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Preparatory activity | |||
| 1 |
Lift vehicle on vehicle lift | AR00.60-P-1000G | |
| Check | |||
| 2 | Check shock absorber (1) for external leaks | If complaint present ↓ Rectify problem subject to separate repair order. |
AP32.00-P-3255-01A |
| 3 | Check shock absorber (1) for external damage, deformation and corrosion | If complaint present ↓ Rectify problem subject to separate repair order. |
AP32.00-P-3255-01A |
| 4 | Check condition and seating of springs (2) | Damage can occur otherwise. If complaint present ↓ Rectify problem subject to separate repair order. |
|
| 5 | Check condition of elastomer bearings (3) | If complaint present ↓ Rectify problem subject to separate repair order. |
|
| 6 | Check protective boot (7) in visible area for correct seating, damage and deformation | For suspension strut with protective boot (7). If complaint present ↓ Rectify problem subject to separate repair order. |
|
| 7 | Check stop buffer (4) in visible area for correct seating, damage and deformation | If complaint present ↓ Rectify problem subject to separate repair order. |
|
| 8 | Check spring cup (5) in visible area for correct seating, damage and deformation | If complaint present ↓ Rectify problem subject to separate repair order. |
|
| 9 | Check electrical connection (6) | If present. | |
| Finishing activity | |||
| 10 |
Lower vehicle with lifting platform | AR00.60-P-1000G |
