Remove/Install Rear Wheel Hub - AR35.20-P-0310GW

Model 463 (except 463.234/255/274)

as of model year 2013 up to model year 2019 except code ZQ0 (G 500 4x4 ²  )

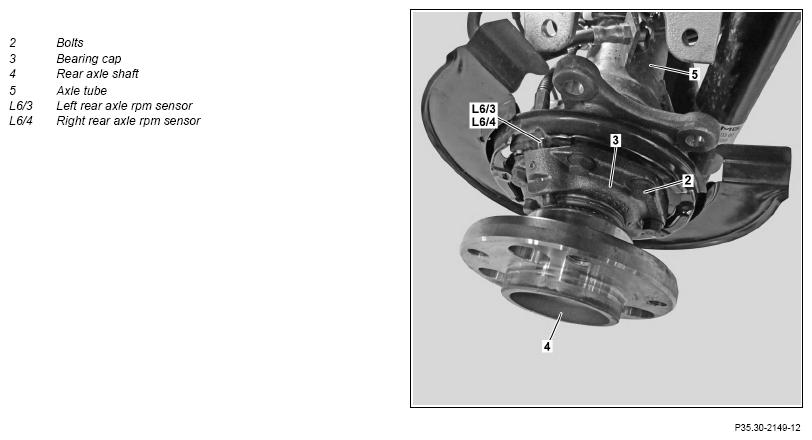

Fig 1: Rear Wheel Hub Components Location - Model 463 (Except 463.234/255/274) Up To Model Year 2019 Except Code ZQ0

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove rear axle shaft (4)	Remove/install rear axle shaft	AR35.30-P-0620GW
2	Disassemble rear axle shaft (4)	Disassemble/assemble rear axle shaft The wheel hub and rear axle shaft (4) form a unit and can only be removed or replaced together.	AR35.30-P-7351GW
3	Install in the reverse order
