Remove/Install Differential Lock Of Rear Axle - AR35.40-P-0001XGA

Model 463 with engine 176, 177

as of model year 2019

Model 463 with engine 264

as of model year 2019

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

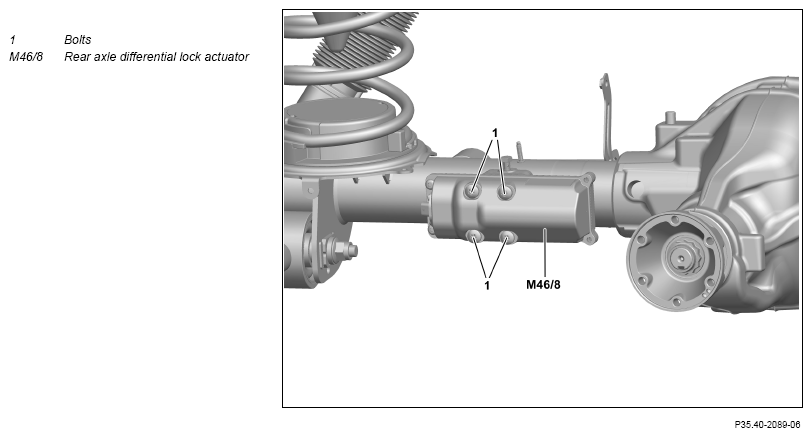

Fig 1: Rear Axle Differential Lock Components Location - Model 463 With Engines 176 & 177 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

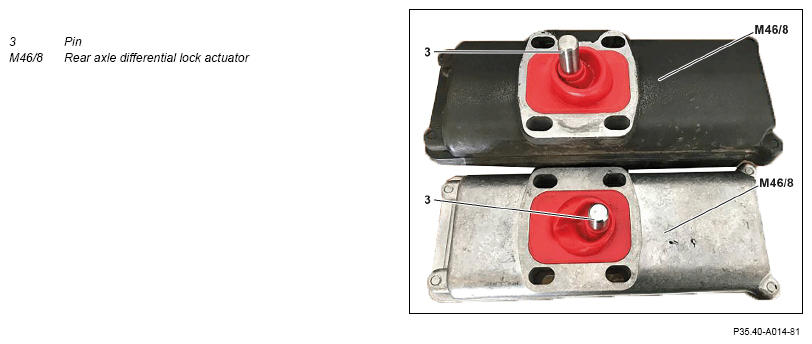

Fig 2: Identifying "Inter Wheel Differential Lock Engaged" Position

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove
1	Raise vehicle using vehicle lift until wheel and tire assemblies can turn freely.		AR00.60-P-1006A
2	Release parking brake.
3	Fully lift vehicle using vehicle lift.		AR00.60-P-1006A
4	Release and disconnect electrical connector from rear axle differential lock actuator (M46/8).
5	Remove bolts (1).
6	Remove rear axle differential lock actuator (M46/8).
7	Remove seal.
	Install
8	Install seal.	Replace seal.

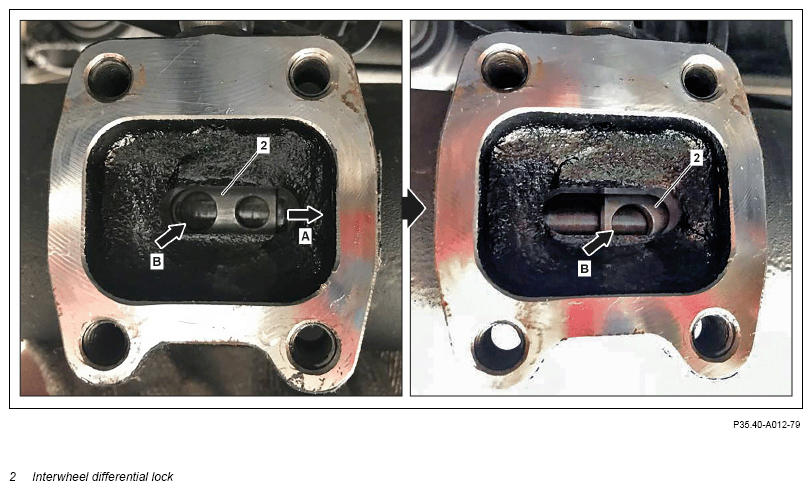

9	Turn rear wheel and tire assembly and simultaneously insert inter wheel differential lock (2) on rear axle manually in direction of arrow (arrow A) using a suitable tool.	If rear axle differential lock actuator (M46/8) is replaced.
		The new rear axle differential lock actuator (M46/8) is supplied in the "Inter wheel differential lock engaged" position (see Fig 2).

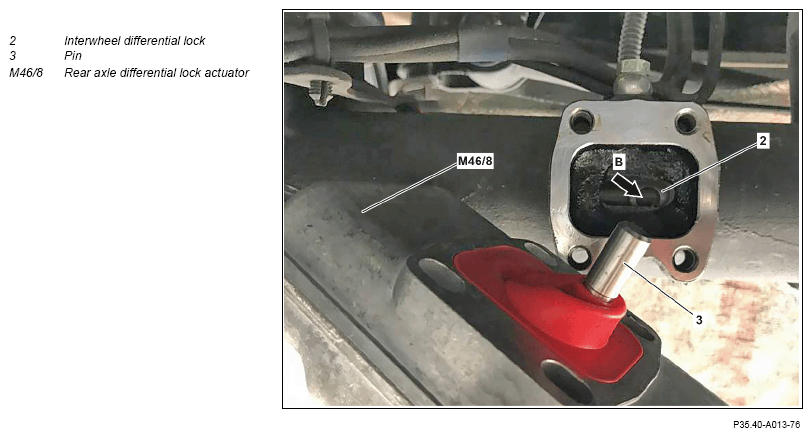

10	Install rear axle differential lock actuator (M46/8).	Insert bolt (3) of rear axle differential lock actuator (M46/8) into large opening (arrow B) on inter wheel differential lock (2).
11	Screw in screws/bolts (1).	Screw, differential lock to axle tube	*BA35.40-P-1007-01A
12	Connect and lock electrical connector of rear axle differential lock actuator (M46/8).
13	Lower vehicle with vehicle lift.		AR00.60-P-1006A

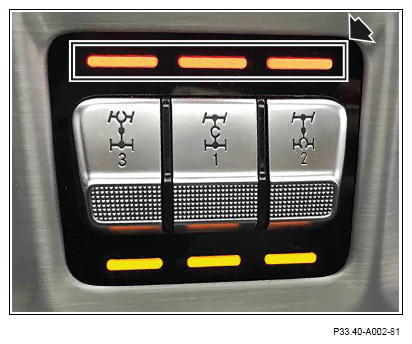

14	Check rear axle differential lock actuator (M46/8) for proper operation.	To do so, start engine, engage in neutral position of "Low Range" automatic transmission, and operate all locks. Then drive in slight wavy lines at walking pace until the indicator lamps of all three locks light up red on the switches (arrow). Then deactivate locks and "Low Range".
