Remove/Install Cover Of Rear Axle Differential - AR35.31-P-0555XGA
Model 463 with engine 176
as of model year 2019
Model 463 with engine 177
as of model year 2019
Model 463 with engine 264
as of model year 2019

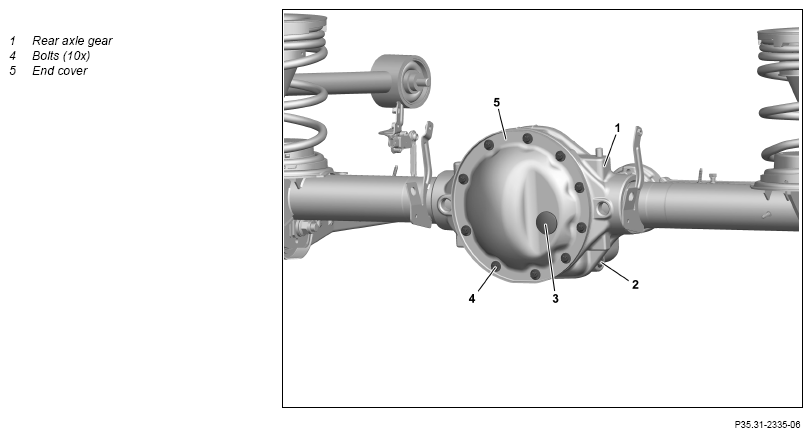

Fig 1: Rear Axle Differential End Cover Components Location - Model 463 With Engines 176 & 177 As Of Model Year 2019
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove | |||
| 1 | Raise vehicle. | AR00.60-P-1006A | |
| 2 | Drain oil from rear axle differential (1). | AR35.31-P-0523XGA | |
| 3 | Remove screws/bolts (4). | ||
| 4 | Remove end cover (5). | ||
| Install | |||
| 5 | Clean sealing surfaces on end cover (5) and on rear axle differential (1). | Assembly cleaner | *BR00.45-Z-1028-04A |
| 6 | Mount end cover (5) with seal. | ||
| 7 | Screw in screws/bolts (4) | ||
| *BA35.30-P-1003-02A | |||
| 8 | Add oil to rear axle differential (1). | AR35.31-P-0523XGA | |
| Check | |||
| 9 | Check rear axle differential (1) for leak tightness. | ||
| 10 | Lower vehicle. |
REAR AXLE DRIVE
| Number | Designation | Model 463 as of model year 2019 | ||
|---|---|---|---|---|
| BA35.30-P-1003-02A | Screw/bolt, end cover to rear axle housing | Stage 1 | Nm | 25 |
| Stage 2 | ∠° | 60 | ||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
