Disassemble, Assemble Rear Axle Differential Assembly - AR35.30-P-0433GG

Model 460

Model 461 (except 461. 331)

Model 463 (except 463.270/271)

up to model year 2013

MODIFICATION NOTES

15.12.2006	Bolt, cover to differential	Model 460, 461, 463 with drum brake	BA35.30-P-1003-01C
01.01.1970	Bolt, cover to differential	Model 461, 463 with disk brake	BA35.30-P-1003-01C

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove differential assembly.		AR35.30-P-0432GG
	Disassemble

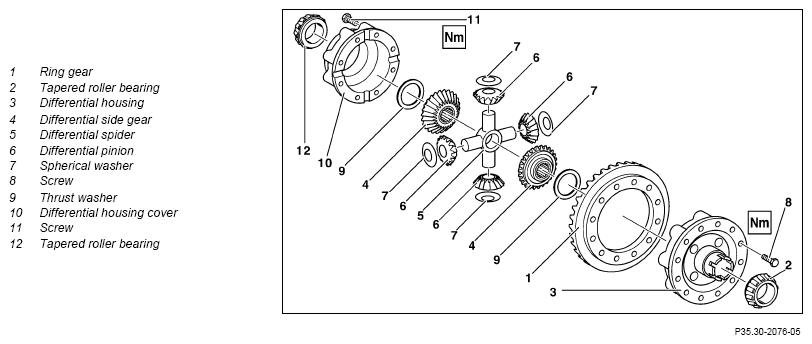

2	Remove tapered roller bearing (2) on ring gear side (1)	Puller	Fig 2
3	Detach ring gear (1) from differential housing (3)
4	Detach tapered roller bearings (12) on the differential housing cover (10)	Puller	Fig 2
5	Remove differential housing cover (10) from differential housing (3)	Mark cover position relative to the differential housing (3).
6	Remove differential side gear (4) and pressure plate (9)
7	Take out differential spider (5) with differential pinions (6) and spherical washers (7)	Mark spherical washers (7), differential pinions (6) and differential cross (5) relative to one another and to the differential housing (3).
8	Remove second differential side gear (4) with pressure plate (9)
	Check
9	Clean all parts, check and replace if necessary
	Assemble
10	Insert differential side gear (4) with pressure plate (9)	The groove on the pressure plate (9) must point towards the differential side gear (4).
11	Assemble differential pinions (6) with spherical washers (7) on differential spider (5)	Before removing, note applied marking.
12	Insert differential spider (5) and mount second differential side gear (4) with pressure plate (9) on the differential spider (5)
13	Install differential housing cover (10) on differential housing (3)	Before removing, note applied marking.
		Bolt, cover to differential Bolt securing cover to differential	*BA35.30-P-1003-01C
14	Check friction torque of differential and adjust if necessary		AR35.30-P-4815-05F
		Friction torque of complete differential with differential lock Friction torque of complete differential with differential lock	*BE35.30-P-1001-03A
		Friction torque of complete differential without differential lock Friction torque of complete differential without differential lock	*BE35.30-P-1002-03A
		Torque meter	Fig 3
15	Press tapered roller bearings (12) onto differential housing cover (10)	The tapered roller bearing (12) must abut the differential housing cover (10). Before pressing on, heat up the tapered roller bearing (12) to approx. 80°C.
		Assembly drift	Fig 1
16	Press on the tapered roller bearing (2) on the ring gear (1) side	The tapered roller bearing (2) must abut the differential housing (3). Before pressing on, heat up the tapered roller bearing (2) to approx. 80°C.
		Assembly drift	Fig 1
17	Attach ring gear (1) to differential housing (3)	Bolt, ring gear to differential Bolt, ring gear to differential	*BA35.30-P-1002-05A
	Install
18	Install differential assembly		AR35.30-P-0432GG
		Install thinner shim on the ring gear side so that the gear backlash is achieved in each case.

TEST VALUES OF DIFFERENTIAL

Number	Designation		Model 460, 461, 463
BE35.30-P-1001-03A	Friction torque of complete differential with differential lock	Nm	20-40

TEST VALUES OF DIFFERENTIAL

Number	Designation		Model 460, 461, 463
BE35.30-P-1002-03A	Friction torque of complete differential without differential lock	Nm	50-80

RING GEAR WITH DIFFERENTIAL

Number	Designation		Model 460, 461 Model 463 up to model year 2019	Model 463 as of model year 2019
BA35.30-P-1002-05A	Bolt, ring gear to differential	Nm	190	-

REAR AXLE SHAFT

Number	Designation		Model 460, 461, 463 with drum brake	Model 461 with disk brake Model 463 up to model year 2019 with disk brake
BA35.30-P-1003-01C	Bolt securing cover to differential	Nm	30	30

Fig 1: Identifying Assembly Drift (116 589 08 61 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Puller (123 589 08 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Torque Meter (001 589 49 21 00)

Courtesy of MERCEDES-BENZ USA
