Check Condition Of Front Axle And Front Axle Ball Joints - AP33.10-P-3358F
Model 463
up to model year 2019
Shown: Model 463.348
Shown on model 463.234 with code ZQ0 (G 500 4x4 2 )
Shown: Model 463.348
Shown: Model 463.348
Shown: Model 463.348
Shown: Model 463.348
Shown on model 463.234 with code ZQ0 (G 500 4x4 2 )
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of death caused by vehicle slipping or toppling off during lifting | Only lift vehicle at the lift support points specified by the vehicle manufacturer. | AS00.00-Z-0032-01A | |
| Preparatory activity | |||
| 1 | Lift vehicle on vehicle lift | ||
| AR00.60-P-1000G | |||
| Check | |||
| 2 | Check wheel bearings by firmly pulling, pushing and turning the wheels | If there is a problem ↓ Rectify problem subject to separate repair order. |
|

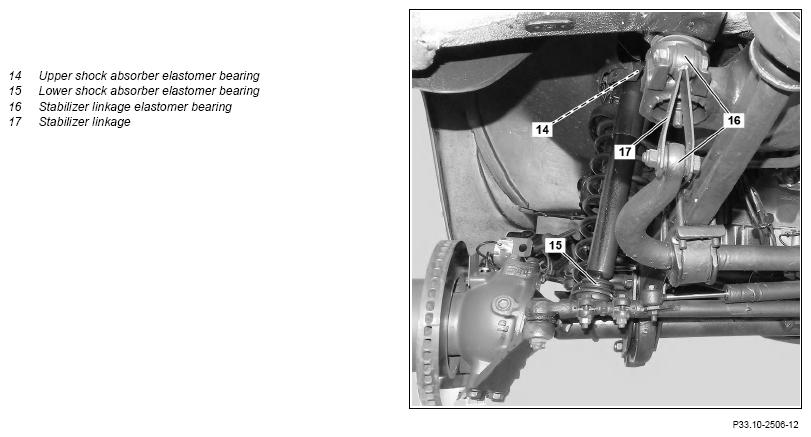

| 3 | Check upper shock absorber elastomer bearings (14) and lower shock absorber elastomer bearings (15) for cracks, deformation and wear, then check for play by firmly pulling and pushing | If there is a problem ↓ Rectify problem subject to separate repair order. |
|

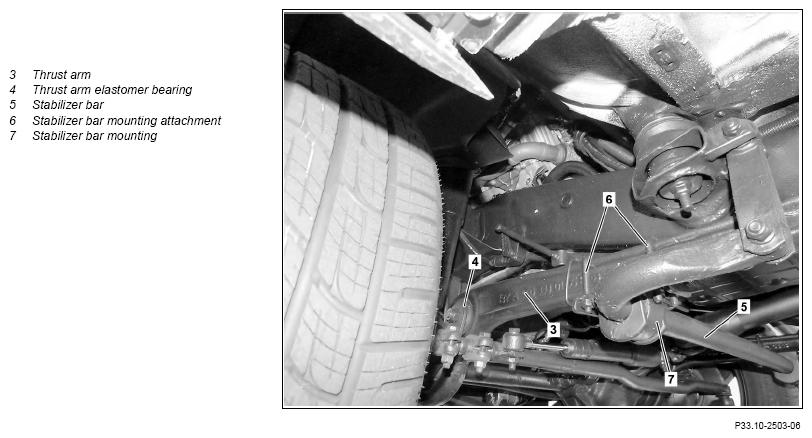

| 4 | Check thrust arms (3) for cracks, deformation and corrosion | If there is a problem ↓ Rectify problem subject to separate repair order. |
|
| 5 | Check thrust arm elastomer bearings (4) for cracks, deformation and wear, then check for play by firmly pulling and pushing | If there is a problem ↓ Rectify problem subject to separate repair order. |
|

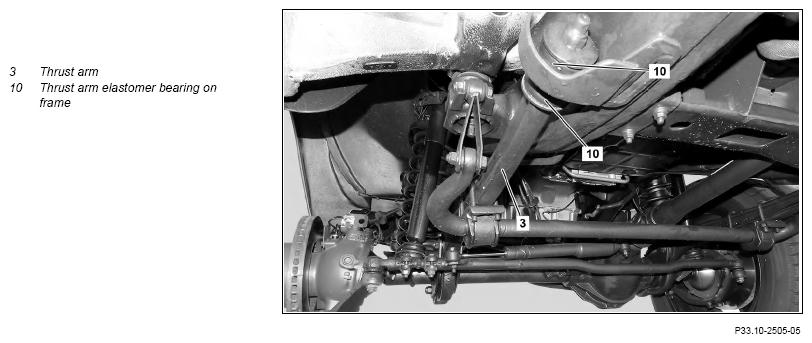

| 6 | Check thrust arm elastomer bearings on frame (10) for cracks, deformation and wear, then check for play by firmly pulling and pushing | If there is a problem ↓ Rectify problem subject to separate repair order. |
|

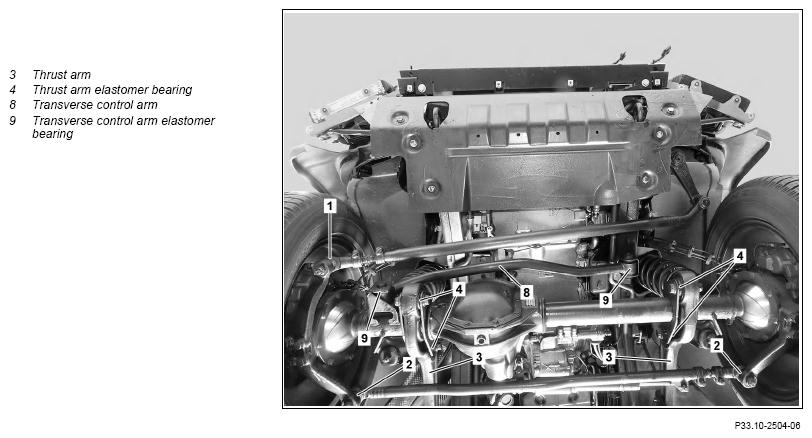

| 7 | Check transverse control arms (8) for cracks, deformation and corrosion | If there is a problem ↓ Rectify problem subject to separate repair order. |
|
| 8 | Check transverse control arm elastomer bearings (9) for cracks, deformation and wear, then check for play by firmly pulling and pushing | If there is a problem ↓ Rectify problem subject to separate repair order. |
|
| 9 | Check stabilizer bar (5) for cracks, deformation and corrosion | If there is a problem ↓ Rectify problem subject to separate repair order. |
|
| 10 | Check stabilizer bar bushings (7) for cracks, deformation and wear, then check for play by firmly pulling and pushing on stabilizer bar (5) | If there is a problem ↓ Rectify problem subject to separate repair order. |
|

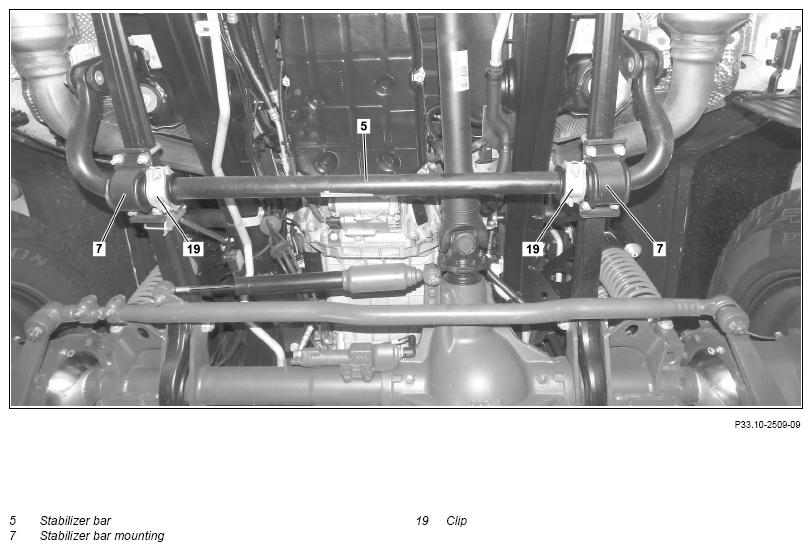

| 11 | Check clamps (19) for cracks, deformation and wear, then check for play by firmly pulling and pushing on stabilizer bar (5) | Model 463 up to model year 2019 with code MUK2 (USA or Canada vehicle model designation) Model 463 up to model year 2019 with code ZQ0 (G 500 4x42 ) If there is a problem ↓ Rectify problem subject to separate repair order. |
|
| 12 | Check stabilizer bar bushing attachments (6) for cracks, deformation and corrosion | If there is a problem ↓ Rectify problem subject to separate repair order. |
|
| 13 | Check stabilizer bar linkage elastomer bearings (16) for cracks, deformation and wear, then check for play by firmly pulling and pushing | If there is a problem ↓ Rectify problem subject to separate repair order. |
|
| 14 | Check stabilizer bar linkages (17) for cracks, deformation and corrosion | If there is a problem ↓ Rectify problem subject to separate repair order. |
|

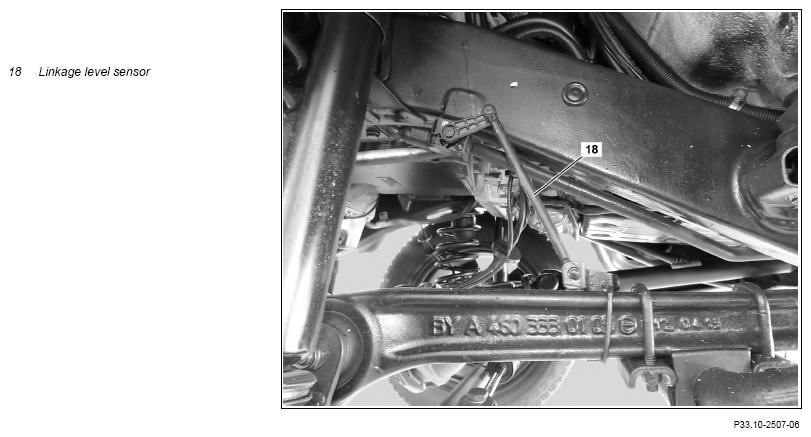

| 15 | Check level sensor linkages (18) for correct seating, cracks, deformation, corrosion and play | Vehicle with level sensor linkages (18). If there is a problem ↓ Rectify problem subject to separate repair order. |
|

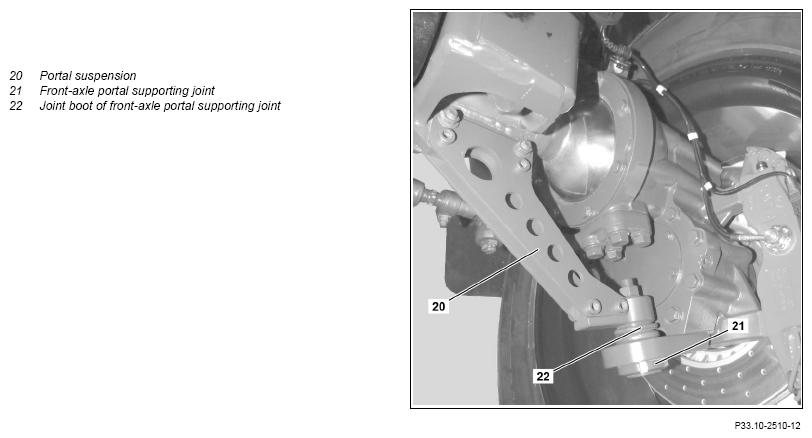

| 16 | Check portal suspensions (20) for cracks, deformation and corrosion | Vehicle with portal axles. If there is a problem ↓ Rectify problem subject to separate repair order. |
|
| 17 | Check front-axle portal supporting joint (21) for cracks, deformation and wear, then check for play by firmly pulling and pushing | Vehicle with portal axles. If there is a problem ↓ Rectify problem subject to separate repair order. |
|
| 18 | Check joint boot of front-axle portal supporting joint (21) for proper condition, leaktightness and correct seating | Vehicle with portal axles. If there is a problem ↓ Rectify problem subject to separate repair order. |
|
| Finishing activity | |||
| 19 | Lower vehicle with lifting platform | ||
| AR00.60-P-1000G |
