Remove/Install Steering Wheel - AR46.10-P-0100XG

Model 463 as of model year 2019

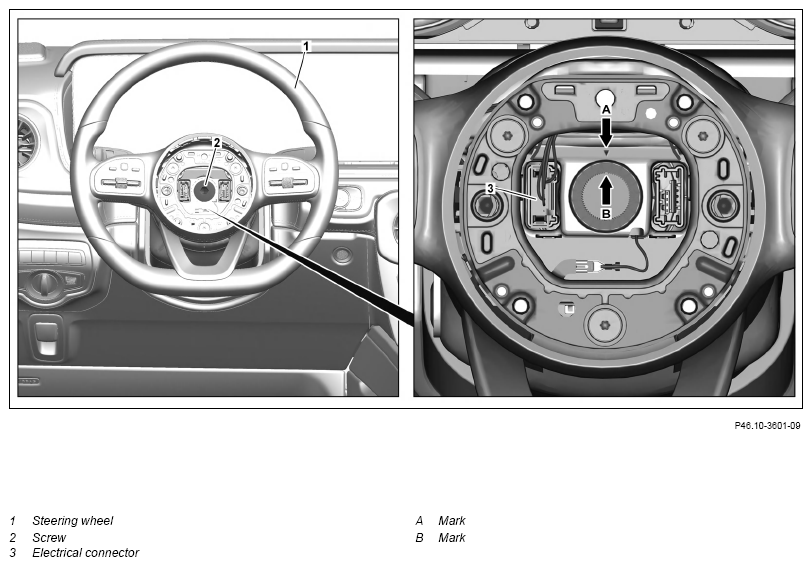

Fig 1: Steering Wheel Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove/install
1	Turn steering wheel (1) to center position.
2	Remove driver airbag from steering wheel (1).		AR91.60-P-0663XG
3	Counterhold steering wheel (1) and unscrew bolt (2).	: Use the bolt (2) and mark with a non-water-soluble pen (color dot).
		Bolt, steering wheel to steering shaft If the bolt (2) already bears a marking (color dot) ↓ replace the bolt (2).	*BA46.10-P-1001-02A
4	Release and disconnect electrical connector (3).
5	Remove steering wheel (1).	: Line up marking (arrow A) on the steering wheel (1) with marking (arrow B) on the steering shaft.
6	Install in reverse order.

STEERING WHEEL

Number	Designation		Model 463 as of model year 2019 Model 463 up to model year 2019
BA46.10-P-1001-02A	Bolt, steering wheel to steering shaft	Nm	80
