Remove/Install Seat Occupancy Recognition Sensor - AR91.60-P-0720XG

Model 463

as of model year 2019

Shown on seat cushion with code 242 (Electrically adjustable front seats)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove seat cushion of front passenger seat.

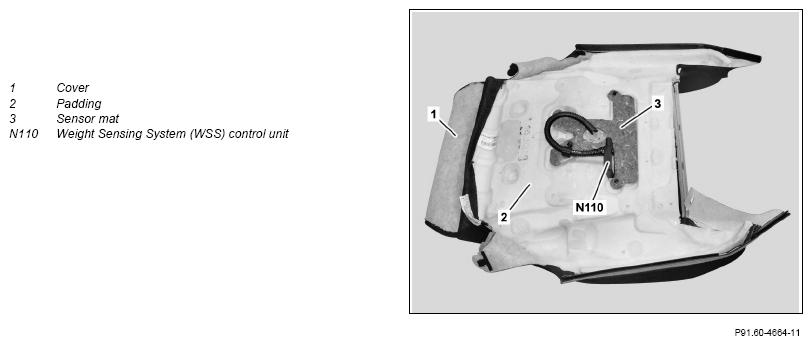

		The seat cushion with Weight Sensing System (WSS) consists of the cover (1), padding (2), Weight Sensing System (WSS) control unit (N110) and sensor mat (3). In a repair case, completely replace seat cushion with Weight Sensing System (WSS); it is supplied pre-calibrated.	AR91.10-P-3310XG
2	Install in reverse order.
