Remove/Install Seat Occupancy Recognition Sensor - AR91.60-P-0720GW
Model 463
as of model year 2013 up to model year 2019
/FACELIFT 2012

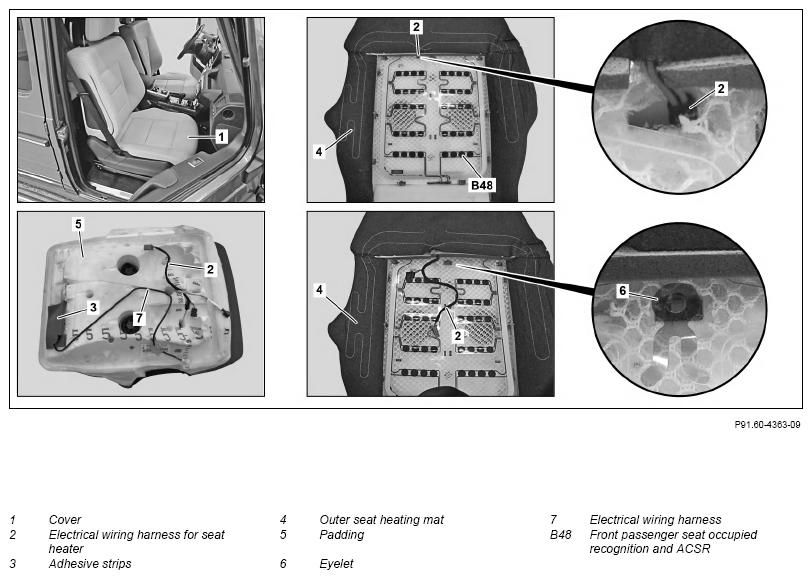

Fig 1: Seat Occupancy Recognition And ACSR Components Location - Model 463 As Of Model Year 2013 Up To Model Year 2019 /Facelift 2012
| Remove/install | |||
| 1 | Remove cover (1) from front passenger seat cushion | Model 463 as of model year 2013 up to model year 2019 |
AR91.18-P-1800GW |
| 2 | Release control unit with adhesive strips (3) from padding | ||
| 3 | Guide electrical wiring harness (7) together with control unit through padding (5) | ||
| 4 | Guide electrical wiring harness (2) of outer seat heating mat (4) through padding (5) | ||
| 5 | Carefully loosen seat occupancy recognition and ACSR (B48) from outer seat heating mat (4) | ||
| 6 | Unclip seat occupancy recognition and ACSR (B48) from eyelet (6) and pull out toward rear | ||
| 7 | Install in the reverse order |
