(Remove/Install Seat Occupancy Recognition Sensor - AR91.60-P-0720A)

Model 210

Model 463

up to model year 2000

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on performing repair, body work and welding on vehicles with airbags and RTE units		AH91.00-P-0002-01M
1	Remove cover from seat cushion	Model 210	AR91.18-P-1800F
		Model 463.### ## up to 105043 up to model year 2000	AR91.18-P-1800A
2	Withdraw ignition key

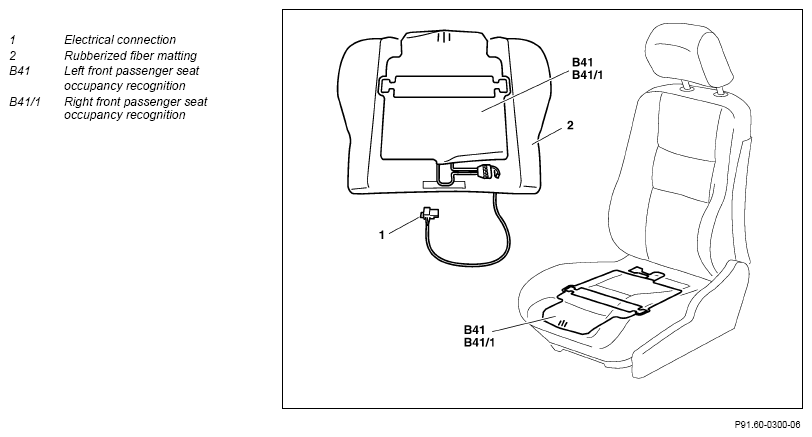

3	Unclip electrical connection (1) of seat occupancy recognition from coupling strip of seat
4	Loosen line of electrical connection from seat and guide upward out of rubberized fiber matting (2)
5	Remove seat occupancy recognition (B41 or B41/1) from rubberized fiber matting (2)	Place seat occupancy recognition (B41 or B41/1) evenly onto rubberized fiber matting (2). The fabric side must face upward. Do not kink seat occupancy recognition (B41 or B41/1).
6	Install in the reverse order
