Remove/Install Frontal Acceleration Sensor - AR91.60-P-0750XG
Model 463
as of model year 2019

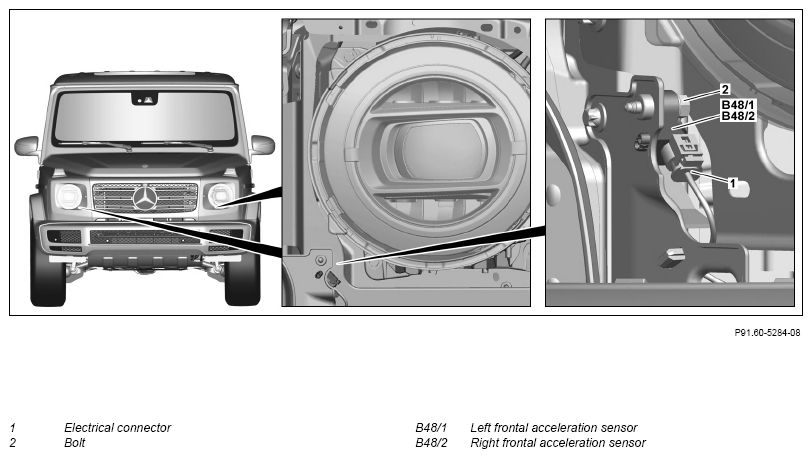

Fig 1: Frontal Acceleration Sensor Components Location - Model 463 As Of Model Year 2019 (Shown On Left Side Of Vehicle)
Shown on left side of vehicle
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Disconnect ground line from battery. | AR54.10-P-0003XG | |
| 2 | Remove radiator grille. | AR88.00-P-2115XG | |
| 3 | Release and disconnect electrical connector (2). | ||
| 4 | Unscrew bolt (1). | *BA91.60-P-1010-01B | |
| 5 | Remove left frontal acceleration sensor (B48/1) or right frontal acceleration sensor (B48/2). | ||
| 6 | Install in reverse order. |
AIRBAG
| Number | Designation | Model 463 up to 11/30/00 up to model year 2019 | Model 463 as of 12/1/00 up to model year 2019 | |
|---|---|---|---|---|
| BA91.60-P-1010-01B | Bolt, frontal acceleration sensor to mounting console (bumper) | Nm | - | - |
AIRBAG
| Number | Designation | Model 463 as of model year 2019 | |
|---|---|---|---|
| BA91.60-P-1010-01B | Bolt, frontal acceleration sensor to mounting console (bumper) | Nm | 8 |
