Remove/Install Front Seat Control Unit - AR91.29-P-1550XG
Model 463
as of model year 2019
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform commissioning of driver's seat control unit (N32/1) or front passenger seat control unit (N32/2). | Only when replacing the driver's seat control unit (N32/1) or the front passenger seat control unit (N32/2). | |
| AD00.00-P-2000-04B | |||
| 2 | Move front seat all the way up and all the way back. | ||
| 3 | Disconnect ground line from battery. | AR54.10-P-0003XG | |
| 4 | Remove cover of the seat adjustment unit. | ||
| 5 | Disconnect electrical connectors from driver's seat control unit (N32/1) or front passenger seat control unit (N32/2). | ||

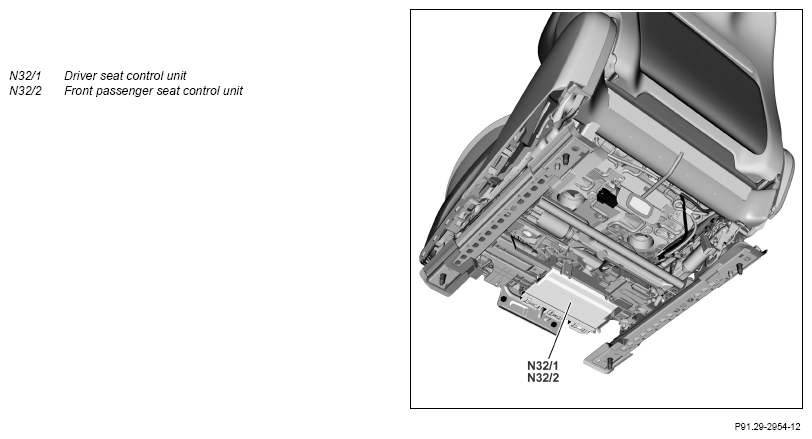

| 6 | Release and remove driver's seat control unit (N32/1) or front passenger seat control unit (N32/2). | ||
| 7 | Install in reverse order. |
