Remove/Install Rear Blower Motor - AR83.30-P-5565XG

Model 463

as of model year 2019

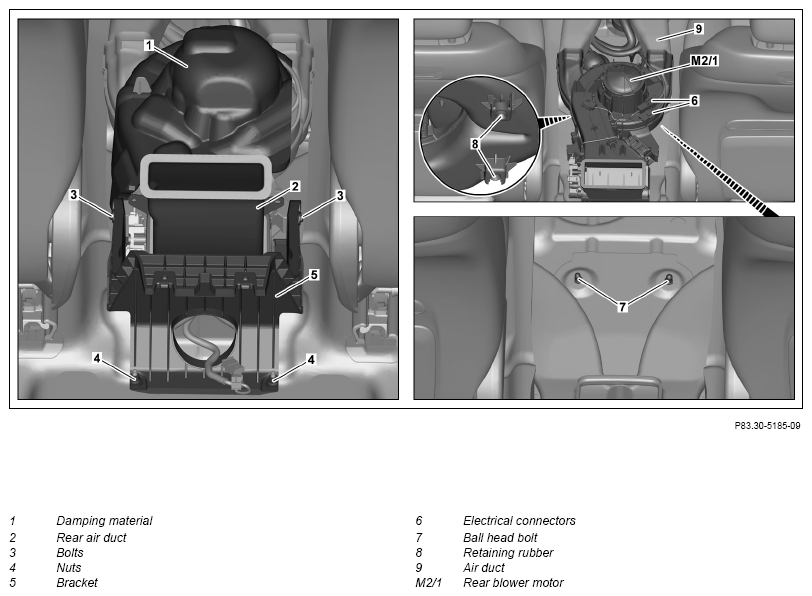

Fig 1: Rear Blower Motor Components Location - Model 463 As Of Model Year 2019

G13660107

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove center console.		AR68.20-P-2000XG
2	Remove damping (1) at rear blower motor (M2/1).
3	Move both front seats to foremost position and all the way upward.
4	Remove rear air duct (2).
5	Remove screws (3).
6	Unscrew nuts (4).
7	Remove holder (5).
8	Disconnect electrical connectors (6) at rear blower motor (M2/1).
9	Lift rear blower motor (M2/1) at rear and pull out of ball studs (7) at frame floor assembly.	Ensure correct seating of retaining rubbers (8) at rear blower motor (M2/1) and at ball studs (7).
10	Pull rear blower motor (M2/1) from air duct (9) and remove.
11	Remove retaining rubbers (8) at rear blower motor (M2/1).	When replacing the rear blower motor (M2/1).
12	Install in reverse order.
